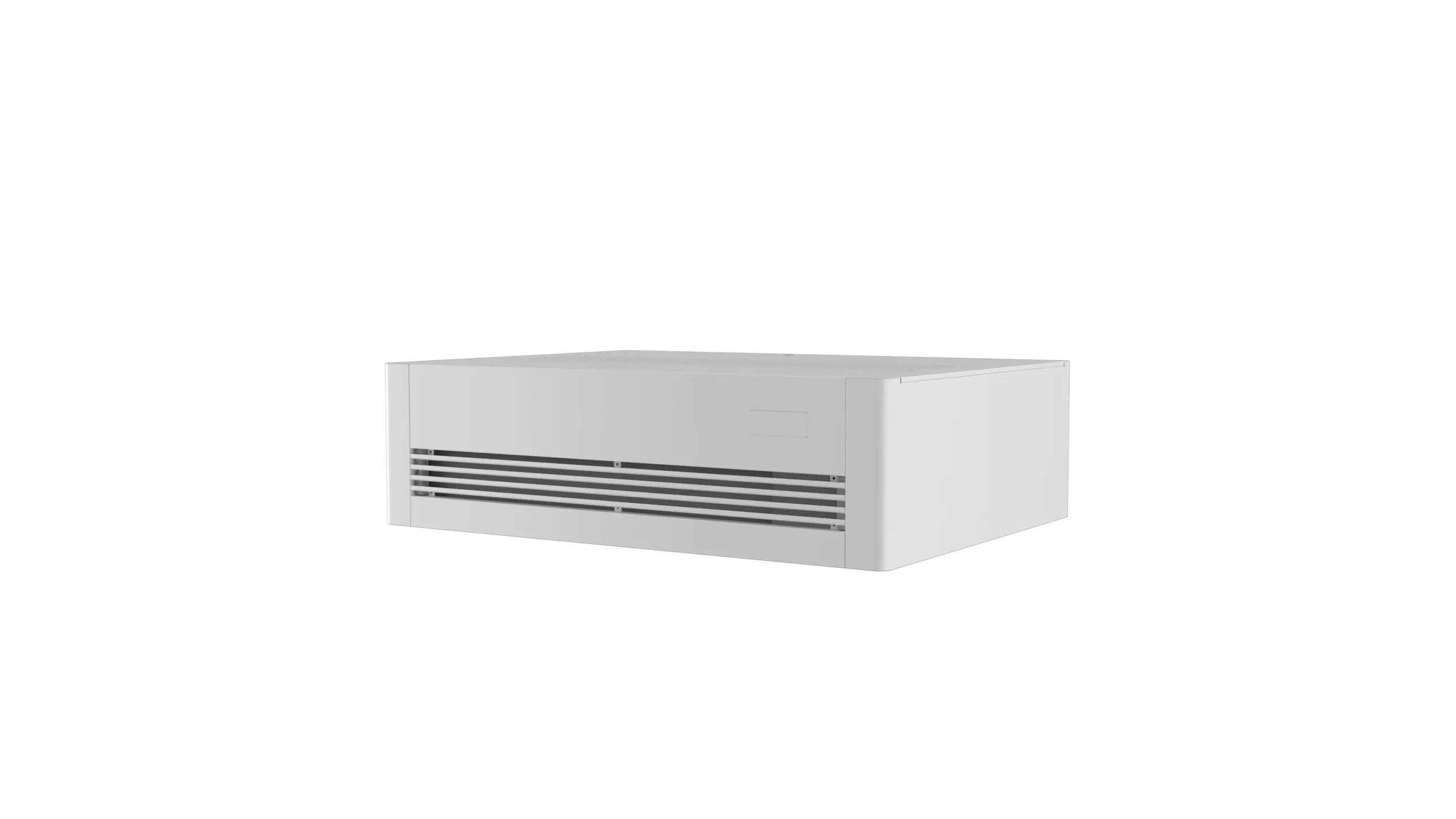

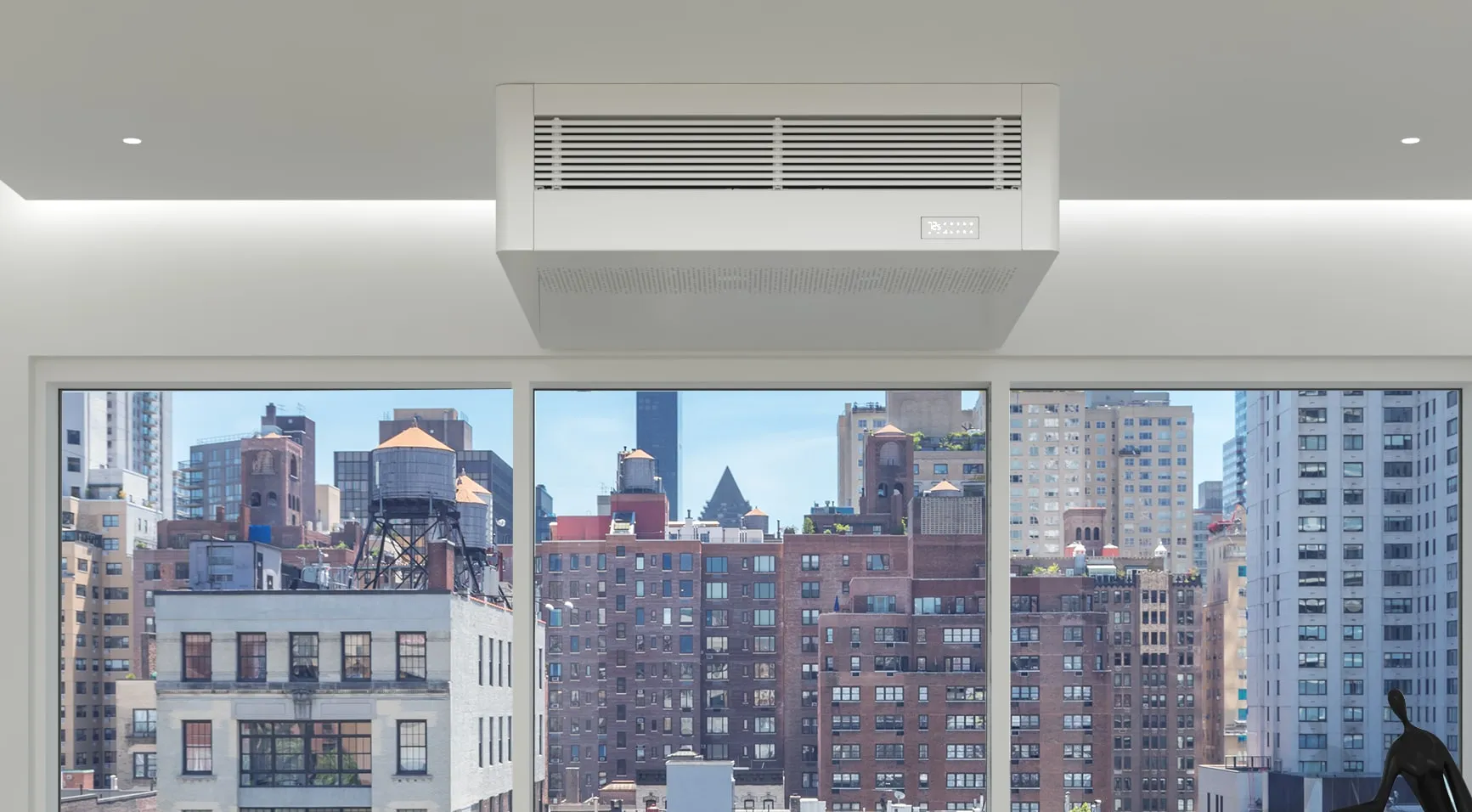

These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling Suspended units are suitable for dormitories, budget rental apartments or hotels, or anywhere a ceiling-mounted unit is desired. Ceiling Suspended units are available with or without the integrated ERV and can be vented directly outside or through ductwork.
AIO Ceiling Suspended is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Suspended to be placed anywhere in a dwelling without restrictions.

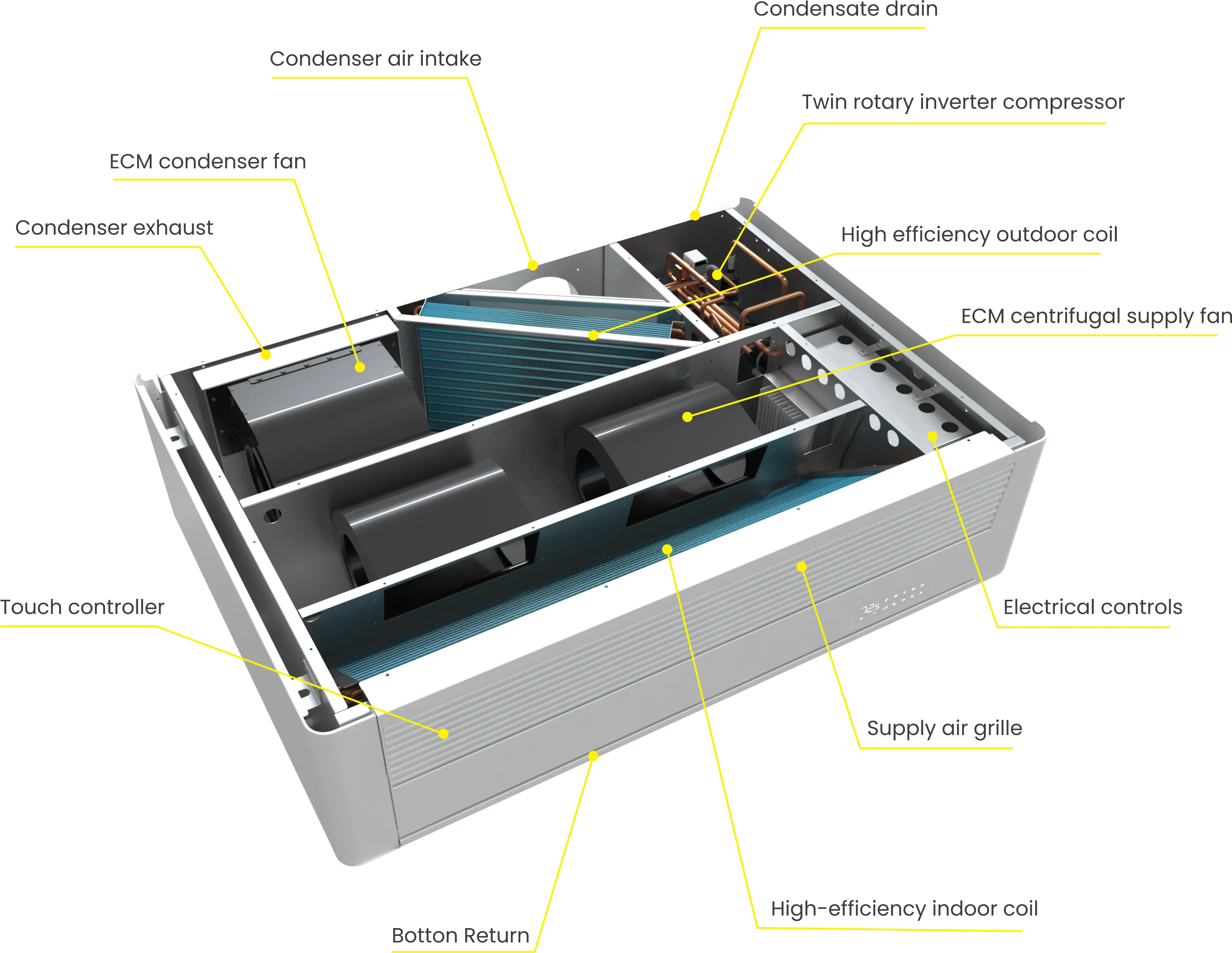

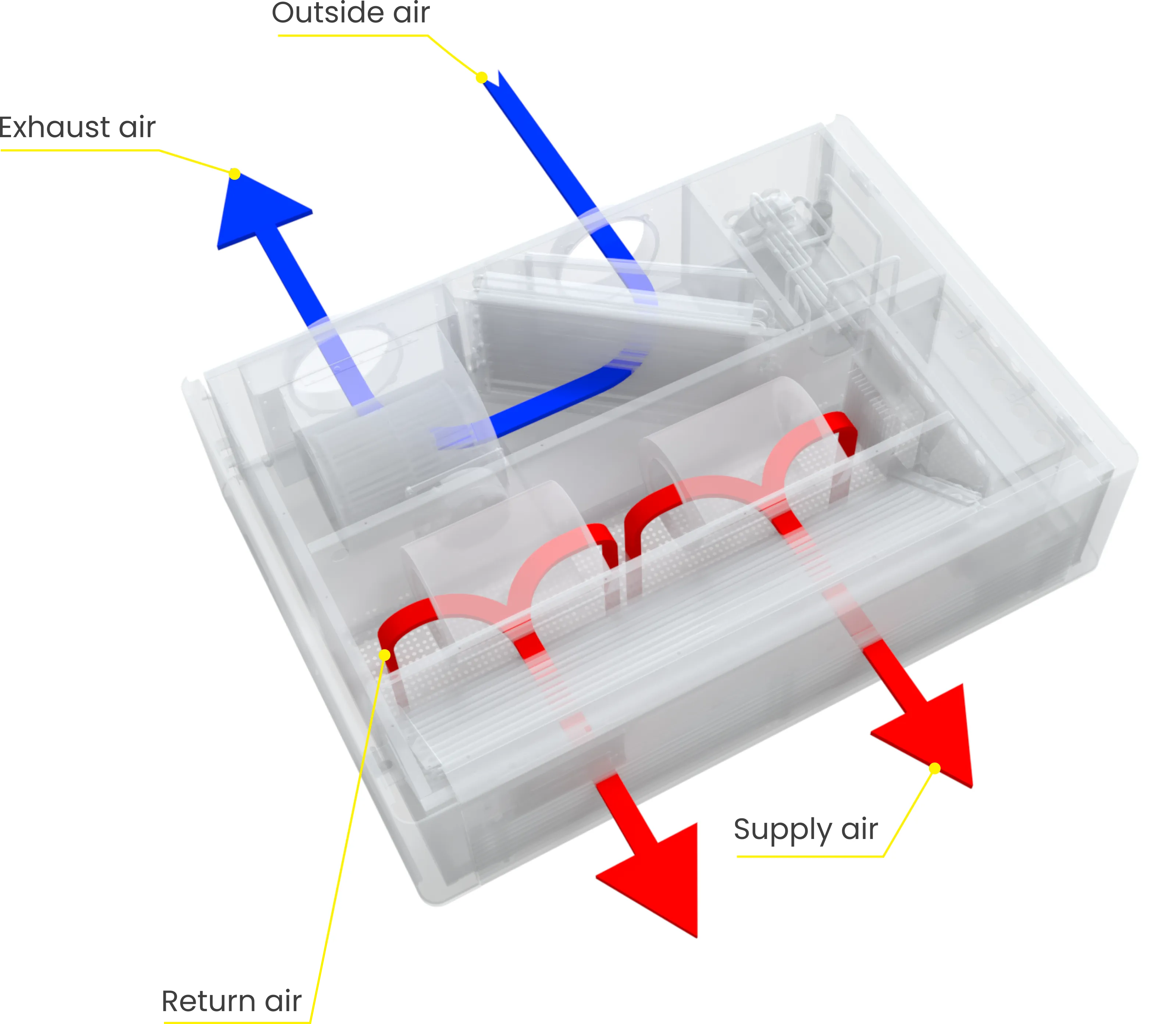

The single 6” round outside air intake connection provides air for the condenser portion. This can be ducted with up 0.45” WC external static pressure (combined between intake and exhaust).
The single 6” round outside air exhaust connection is for the condenser portion. This can be ducted with up 0.45” WC external static pressure (combined between intake and exhaust).
The room is returned into the unit through the integrated return air grille on the bottom of the unit.
The supply air is through the front fixed louver.
| Heat Pump only | 95°F¹ | 105°F² | 115°F³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kBtu/h) | 15.0 | 11.4 | 9.8 |
| Recommended (kBtu/h)* | 9.4 | 8.2 | 7.3 |
| Nominal (kBtu/h) | 7.7 | 7.4 | 6.6 |
| Minimum (kBtu/h) | 3.1 | 3.1 | 3.1 |
| Power Input | |||
| Maximum (kW) | 1.58 | 1.64 | 1.70 |
| Recommended (kW)* | 0.96 | 0.95 | 1.04 |
| Nominal (kW) | 0.73 | 0.83 | 0.91 |
| Minimum (kW) | 0.23 | 0.26 | 0.29 |
| Efficiency | |||
| Maximum | 9.5 | 7.0 | 5.8 |
| Recommended* | 9.8 | 8.6 | 7.0 |
| Nominal | 10.6 | 8.9 | 7.3 |
| SEER2 | 13.9 | - | - |
| Moisture removal (Pts/h) | 1.8 | 2.0 | 2.2 |
* This is the recommended capacity for sizing the unit to the space
| Heat Pump only** | 47°F¹ | 17°F² | 5°F³ | 0°F⁴ | -5°F⁵ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kBtu/h) | 14.0 | 10.0 | 6.6 | 6.3 | 5.8 |
| Recommended (kBtu/h)* | 9.2 | 9.3 | 6.2 | 5.9 | 5.6 |
| Nominal (kBtu/h) | 8.6 | 8.3 | 6.2 | 5.9 | 5.6 |
| Minimum (kBtu/h) | 3.5 | 3.3 | 2.8 | 2.5 | 3.3 |
| Power Input | |||||
| Maximum (kW) | 1.42 | 1.46 | 1.70 | 1.60 | 1.65 |
| Recommended (kW)* | 0.78 | 1.27 | 1.25 | 1.22 | 1.16 |
| Nominal (kW) | 0.70 | 1.10 | 1.09 | 1.07 | 1.01 |
| Minimum (kW) | 0.32 | 0.42 | 0.44 | 0.43 | 0.48 |
| Efficiency | |||||
| Maximum | 2.9 | 1.1 | 1.1 | 1.1 | 1.0 |
| Recommended | 3.5 | 7.3 | 5.5 | 5.4 | 5.3 |
| Nominal | 3.6 | 2.2 | 1.7 | 1.6 | 1.6 |
| Minimum | 3.3 | 2.3 | 1.9 | 1.7 | 2.0 |
| HSPF2 | 9.2 | - | - | - | - |
* This is the recommended capacity for sizing the unit to the space.
** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.
| Heat Pump only | 95°F¹ | 105°F² | 115°F³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kBtu/h) | 15.0 | 11.4 | 9.8 |
| Recommended (kBtu/h)* | 9.4 | 8.2 | 7.3 |
| Nominal (kBtu/h) | 7.7 | 7.4 | 6.6 |
| Minimum (kBtu/h) | 3.1 | 3.1 | 3.1 |
| Power Input | |||
| Maximum (kW) | 1.58 | 1.64 | 1.70 |
| Recommended (kW)* | 0.96 | 0.95 | 1.04 |
| Nominal (kW) | 0.73 | 0.83 | 0.91 |
| Minimum (kW) | 0.23 | 0.26 | 0.29 |
| Efficiency | |||
| Maximum | 9.5 | 7.0 | 5.8 |
| Recommended* | 9.8 | 8.6 | 7.0 |
| Nominal | 10.6 | 8.9 | 7.3 |
| SEER2 | 13.9 | - | - |
| Moisture removal (Pts/h) | 1.8 | 2.0 | 2.2 |
* This is the recommended capacity for sizing the unit to the space
| Heat Pump only** | 47°F¹ | 17°F² | 5°F³ | 0°F⁴ | -5°F⁵ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kBtu/h) | 14.0 | 10.0 | 6.6 | 6.3 | 5.8 |
| Recommended (kBtu/h)* | 9.2 | 8.7 | 6.2 | 5.9 | 5.6 |
| Nominal (kBtu/h) | 8.6 | 7.8 | 6.2 | 5.9 | 5.6 |
| Minimum (kBtu/h) | 3.5 | 3.3 | 2.8 | 2.5 | 3.3 |
| Power Input | |||||
| Maximum (kW) | 1.42 | 1.46 | 1.70 | 1.60 | 1.65 |
| Recommended (kW)* | 0.78 | 1.27 | 1.25 | 1.22 | 1.16 |
| Nominal (kW) | 0.70 | 1.10 | 1.09 | 1.07 | 1.01 |
| Minimum (kW) | 0.32 | 0.42 | 0.44 | 0.43 | 0.48 |
| Efficiency | |||||
| Maximum | 2.9 | 1.1 | 1.1 | 1.1 | 1.0 |
| Recommended | 3.5 | 7.3 | 5.5 | 5.4 | 5.3 |
| Nominal | 3.6 | 2.2 | 1.7 | 1.6 | 1.6 |
| Minimum | 3.3 | 2.3 | 1.9 | 1.7 | 2.0 |
| HSPF2 | 9.2 | - | - | - | - |
* This is the recommended capacity for sizing the unit to the space.
** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.
