AIO Wall Mounted Pro

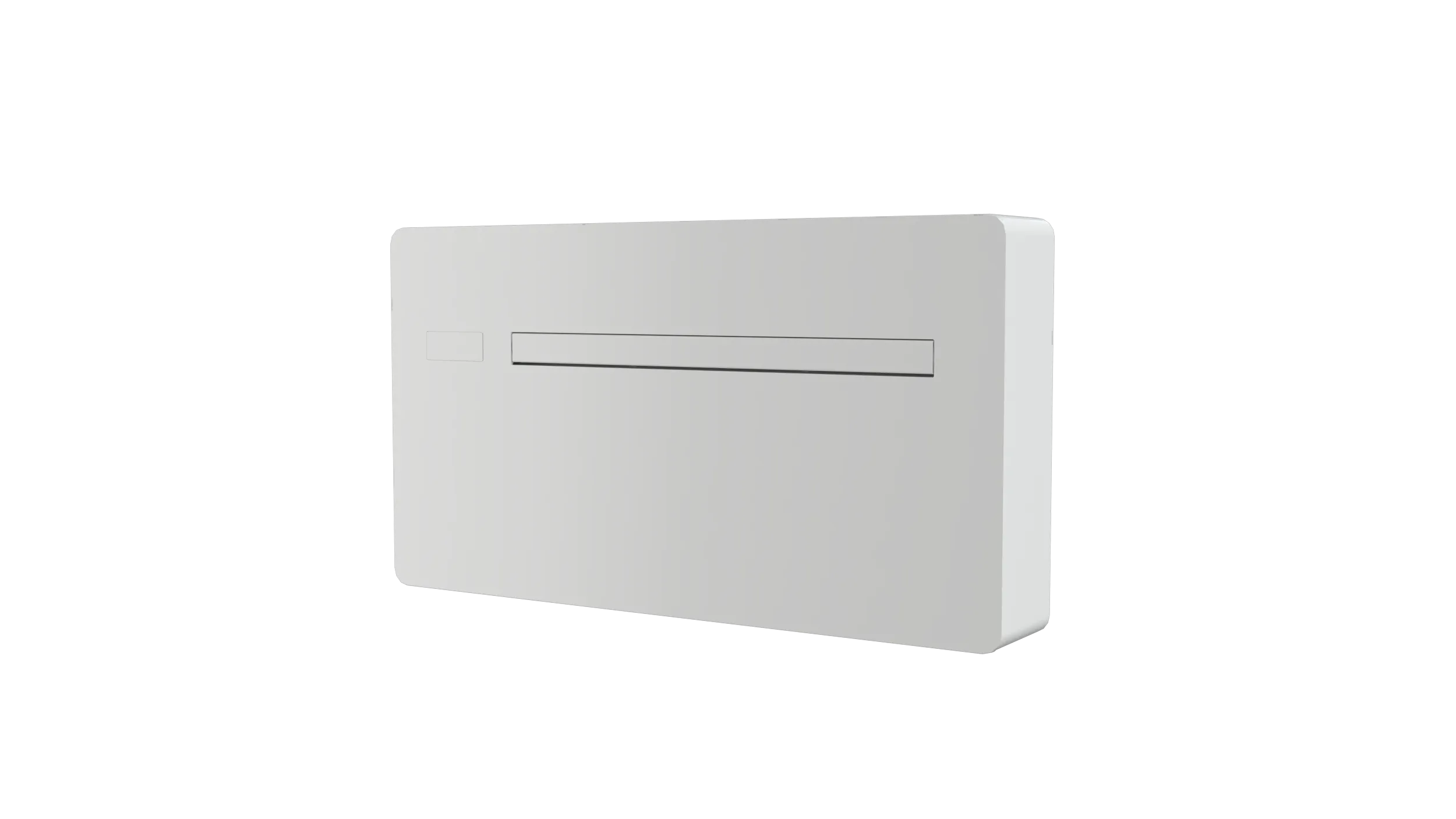

AIO Wall Mounted Pro units are slim and sleek.

The Wall Mounted Pro mounts high or low with a factory-supplied bracket for quick installation. Special adapters allow perpendicular mounting, use with many louver styles, or venting through an existing window—no construction required. An electronic auto-swing louver distributes airflow evenly. It features an onboard touch controller and optional ERV module, plus a powerful exhaust fan (0.45" WC) for flexible venting and higher efficiency than the standard unit.

Key Features

Compact unit
Easy to install
Paintable sleek cabinet
Electronically controlled air louver
Always-on back-lit LED dims after 15 seconds of inactivity
Auto-restart
Washable filters

Options

900/1,800W electric heat
ERV Module
115V or 230V
Hardwire or LCDI cord
R32

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto
Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)

Mounting

High wall
Low wall
Sidewall with adapter
Multiple adapter options

Airflow

Dual 8‑inch external vents
Available 0.45" WC for external ducting, adapters, and louvers

Included controls

Onboard touch controller

Optional controllers

WiFi app for Android and iPhone
Wall Mounted Advanced touchscreen with a 7‑day program
Wall Mounted Basic touch controller
Third party thermostat interface
BACnet/Modbus interface

Airflow

In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.

Outside air
Recirculate air

A - Outside air intake

The 8‑inch round outside air intake connection can be ducted or used with an adapter with up to 0.45‑inch external static pressure (combined between intake and exhaust). Use with any of the approved or custom louvers as long as they comply with the minimum requirements.

B - Outside air exhaust

The 8‑inch round exhaust connection can be ducted or used with an adapter with up to 0.45‑inch external static pressure (combined between intake and exhaust). Use with any of the approved or custom louvers as long as they comply with the minimum requirements.

C - Return air

The return air is on the top through the integrated return air grille.

D - Supply air

The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.

Installation

What's Inside

AIO Wall Mounted Pro exploded components view

Key Specifications

Cooling

Heat Pump only	95°F¹	105°F²	115°F³
Capacity
Maximum (kBtu/h)	15.0	13.5	12.0
Recommended (kBtu/h)*	10.4	9.2	8.6
Nominal (kBtu/h)	9.0	8.2	7.7
Minimum (kBtu/h)	3.3	3.3	3.3
Power Input
Maximum (kW)	1.79	1.79	1.69
Recommended (kW)*	1.05	1.05	1.13
Nominal (kW)	0.81	0.91	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.38	7.6	7.6
Recommended	9.9	8.8	7.6
Nominal	11.2	9.0	7.8
SEER2	15.7
Moisture removal (Pts/h)	1.9	2.1	2.4

1: 95°F; ID: 80°F, W.B. 67°F;; OD: 95°F, W.B. 75°F
2: 105°F; ID: 80°F, W.B. 67°F;; OD: 105°F, W.B. 75°F
3: 115°F; ID: 80°F, W.B. 67°F;; OD: 47°F, W.B. 75°F

* This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**	47°F¹	17°F²	5°F³	0°F⁴	-5°F⁵
Capacity
Maximum (kBtu/h)	14.5	9.0	6.7	6.5	6.1
Recommended (kBtu/h)*	10.1	8.5	6.3	6.0	5.7
Nominal (kBtu/h)	8.2	7.6	5.6	5.4	5.1
Minimum (kBtu/h)	3.9	3.3	2.8	3.3	3.3
Power Input
Maximum (kW)	1.62	1.63	1.63	1.48	1.57
Recommended (kW)*	0.99	1.08	1.06	1.10	1.05
Nominal (kW)	0.72	0.94	0.92	0.96	0.92
Minimum (kW)	0.36	0.37	0.41	0.44	0.47
Efficiency
Maximum	2.6	1.6	1.2	1.3	1.1
Recommended	3.0	2.3	1.7	1.6	1.6
Nominal	3.4	2.4	1.8	1.7	1.6
Minimum	3.2	2.6	2.0	2.2	2.1
HSPF2	8.6

1: 47°F; ID: 70°F, W.B. 60°F;; OD: 47°F, W.B. 43°F
2: 17°F; ID: 70°F, W.B. 60°F;; OD: 17°F, W.B. 13°F
3: 5°F; ID: 70°F, W.B. 60°F;; OD: 5°F, W.B. 3°F
4: 0°F; ID: 70°F, W.B. 60°F;; OD: 0°F
5: -5°F; ID: 70°F, W.B. 60°F;; OD: -5°F

* This is the recommended capacity for sizing the unit to the space.

** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.

Cooling

Heat Pump only	35°C¹	41°C²	46°C³
Capacity
Maximum (kW)	4.4	4.0	3.5
Recommended (kW)*	3.0	2.7	2.5
Nominal (kW)	2.6	2.4	2.3
Minimum (kW)	1.0	1.0	1.0
Power Input
Maximum (kW)	1.79	1.79	1.69
Recommended (kW)*	1.05	1.05	1.13
Nominal (kW)	0.81	0.91	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.38	7.6	7.6
Recommended	9.9	8.8	7.6
Nominal	11.2	9.0	7.8
SEER2	15.7
Moisture removal (L/h)	0.9	1.0	1.1

1: 35°C; ID: 26.7°C, W.B. 19.4°C;; OD: 35°C, W.B. 23.9°C
2: 41°C; ID: 26.7°C, W.B. 19.4°C;; OD: 40.6°C, W.B. 23.9°C
3: 48°C; ID: 26.7°C, W.B. 19.4°C;; OD: 46.1°C, W.B. 23.9°C

* This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**	8°C⁴	-8°C⁵	-15°C⁶	-17°C⁷	-20°C⁸
Capacity
Maximum (kW)	4.2	2.7	2.0	1.9	1.8
Recommended (kW)*	3.0	2.5	1.8	1.8	1.7
Nominal (kW)	2.6	2.2	1.6	1.6	1.5
Minimum (kW)	1.1	1.0	0.8	1.0	1.0
Power Input
Maximum (kW)	1.62	1.63	1.63	1.48	1.57
Recommended (kW)*	0.99	1.08	1.06	1.10	1.05
Nominal (kW)	0.72	0.94	0.92	0.96	0.92
Minimum (kW)	0.36	0.37	0.41	0.44	0.47
Efficiency
Maximum	2.6	1.6	1.2	1.3	1.1
Recommended	3.0	2.3	1.7	1.6	1.6
Nominal	3.4	2.4	1.8	1.7	1.6
Minimum	3.2	2.6	2.0	2.2	2.1
HSPF2	8.6

4: 8°C; ID: 21.1°C, W.B. 15.6°C;; OD: 8.3°C, W.B. 6.1°C
5: -8°C; ID: 21.1°C, W.B. 15.6°C;; OD: -8.3°C, W.B. 1-10.6°C
6: -15°C; ID: 21.1°C, W.B. 15.6°C;; OD: -15°C, W.B. -16.1°C
7: -17°C; ID: 21.1°C, W.B. 15.6°C;; OD: -17.8°C
8: -20°C; ID: 21.1°C, W.B. 15.6°C;; OD:-20.6°C
