OSMO Recessed Ceiling

High finish, flight fit

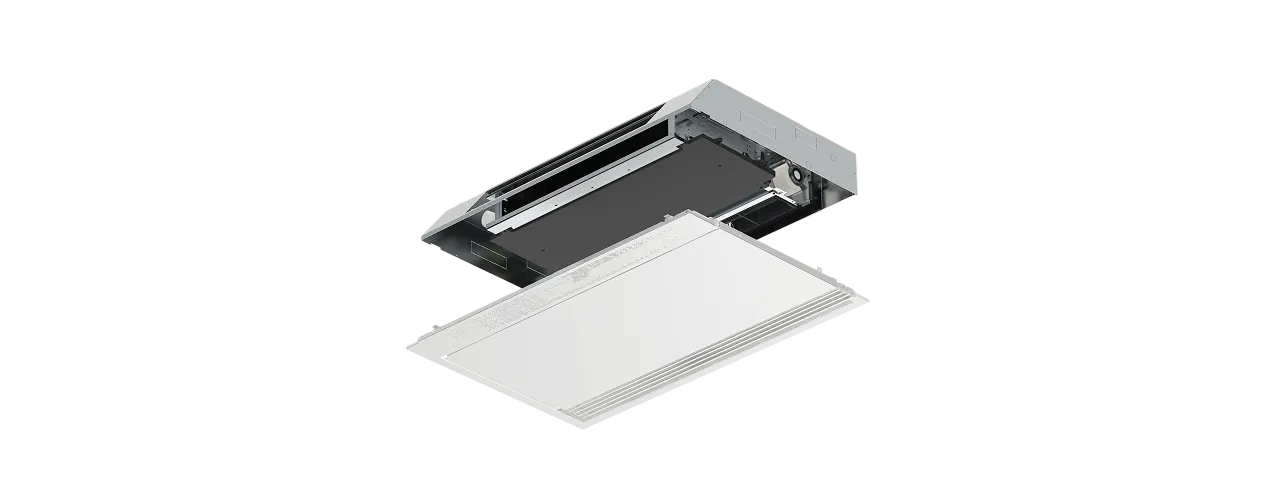

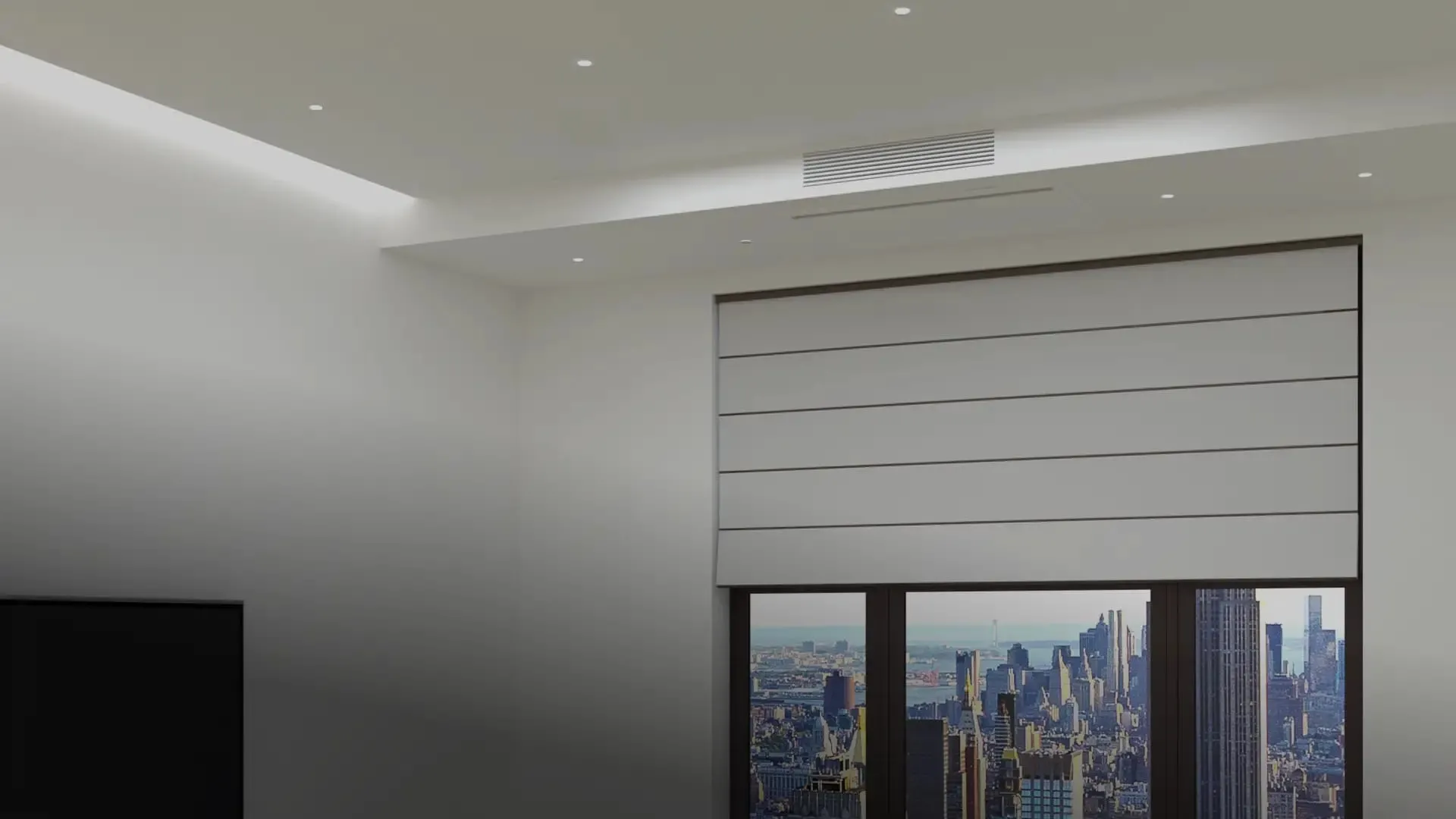

The OSMO Recessed Ceiling fan coil offers a high level of fit and finish for a ceiling-mounted fan coil. With the unit recessed into the ceiling, only the sleek, all-metal, paintable cover panel is visible, providing a clean and slim design ideal for discerning clients and demanding architects.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

Flush panel with cabinet recessed into false ceiling
Paintable all-metal cabinet
Auto-restart
Washable filters

Options

LCDI power cord
Custom factory colors

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto

Connection

2‑pipe
4‑pipe
Can connect to low temperature 4 pipe systems with optional 6‑way valve
Available in 1/2 or 3/4 connections

Mounting

Recessed ceiling mount

Airflow

Supply air straight out (horizontal)
Return air is on bottom

Controller Options

WiFi app for Android and iPhone
Centralized control
Wall Mounted Basic touch controller
Third party thermostat interface
BACnet/Modbus interface

Dimensions

OSMO Recessed Ceiling dimensioned drawing

Model	RC4	RC8	RC10	RC12	RC14
L (in)	14.9	22.7	30.6	38.5	46.4

Model	RC4	RC8	RC10	RC12	RC14
L (mm)	378	577	777	978	1179

OSMO Recessed Ceiling aesthetic panel drawing

Model	RC4	RC8	RC10	RC12	RC14
L (in)	20.7	28.5	36.4	44.3	52.2
Aesthetic panel (in)	27.8	35.7	43.5	51.3	59.3

Model	RC4	RC8	RC10	RC12	RC14
L (mm)	526	724	925	1125	1326
Aesthetic panel (mm)	706	907	1105	1303	1506

Technical Specifications

Cooling

	RC4	RC8	RC10	RC12	RC14
Total (MBh)	3.1	7.2	9.6	11.3	12.7
Sensible (MBh)	2.5	5.9	7.2	9.2	9.9
Water flow (GPM)	41.5	96.4	127.6	150.0	168.5
Pressure (Ft H2O)	4.0	2.7	5.7	6.0	7.1

Heating

	RC4	RC8	RC10	RC12	RC14
Capacity (MBh)	3.5	7.5	10.3	13.0	14.7
Water flow (GPM)	46.2	100.4	137.1	173.0	196.3
Pressure (Ft H2O)	3.0	3.1	6.4	7.1	7.8

Airflow

	RC4	RC8	RC10	RC12	RC14
High (CFM)	86	173	258	334	390
Medium (CFM)	53	124	187	241	282
Low (CFM)	29	69	106	145	154
Static pressure (In W.C.)	0.04	0.04	0.05	0.05	0.05

Cooling

	RC4	RC8	RC10	RC12	RC14
Total (kW)	0.9	2.1	2.8	3.3	3.7
Sensible (kW)	0.7	1.7	2.1	2.7	2.9
Water flow (L)	157.1	364.9	483.0	567.8	637.8
Pressure (kPa)	12.0	8.1	17.0	17.9	21.2

Heating

	RC4	RC8	RC10	RC12	RC14
Capacity (kW)	1.0	2.2	3.0	3.8	4.3
Water flow (L)	174.9	380.1	519.0	654.9	743.1
Pressure (kPa)	9.0	9.3	19.1	21.2	23.3

Airflow

	RC4	RC8	RC10	RC12	RC14
High (m³/h)	146	294	438	567	663
Medium (m³/h)	90	211	318	409	479
Low (m³/h)	49	117	180	246	262
Static pressure (Pa)	10	10	12	12	12
