AIO Wall Mounted

AIO Wall Mounted units are slim and sleek.

AIO Wall Mounted units are slim and sleek, mounting high or low with a factory-supplied bracket for quick installation. An electronic auto-swing louver distributes airflow evenly. Ideal for any free wall space, they feature an onboard touch controller and an optional ERV module.

Key Features

Compact unit
Easy to install
Paintable sleek cabinet
Electronically controlled air louver
Always-on back-lit LED dims after 15 seconds of inactivity
Auto-restart
Washable filters

Options

900/1,800W electric heat
Optional ERV module
115V or 230V
Hardwire or LCDI cord
R32

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto
Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)

Mounting

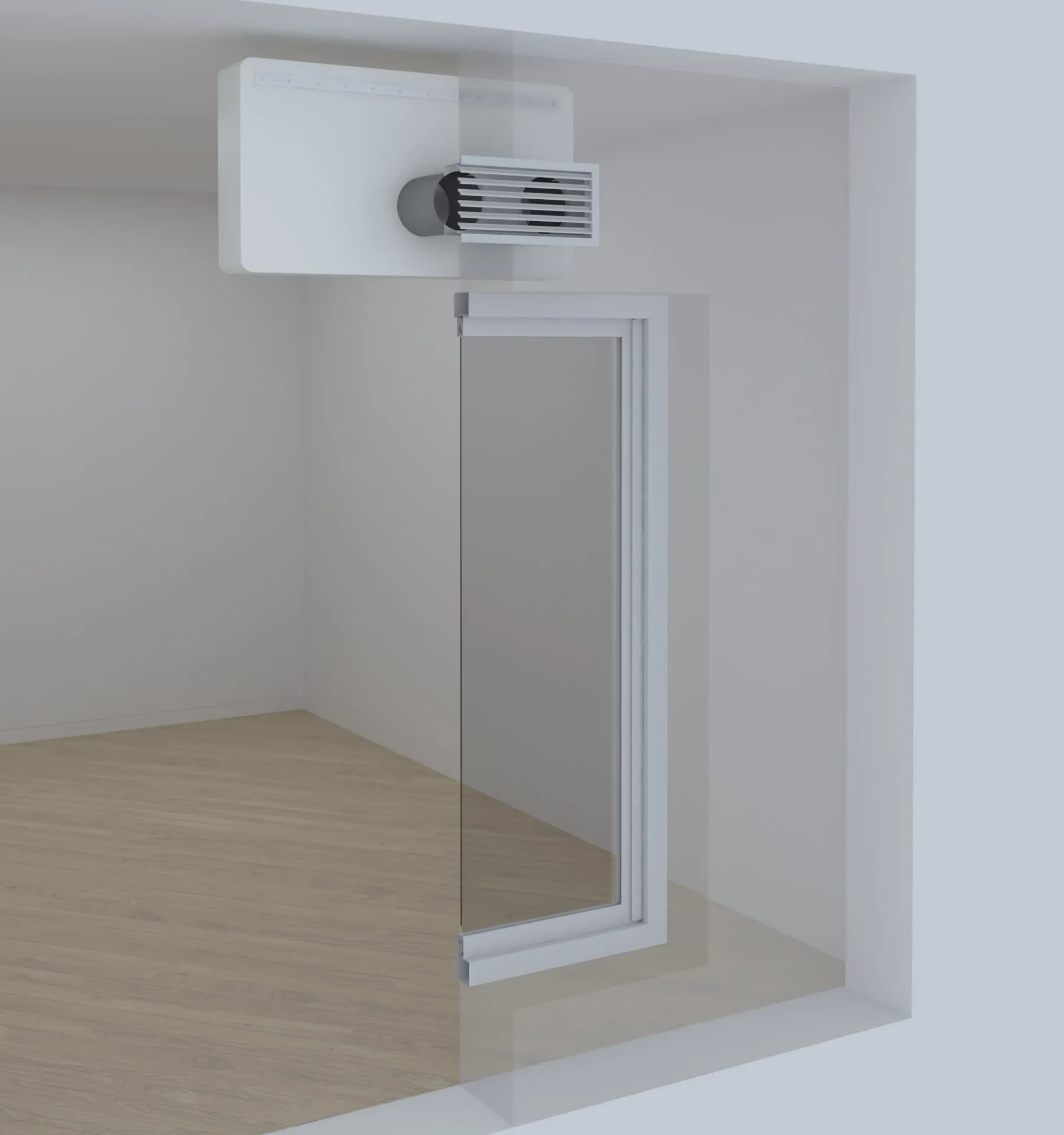

High wall

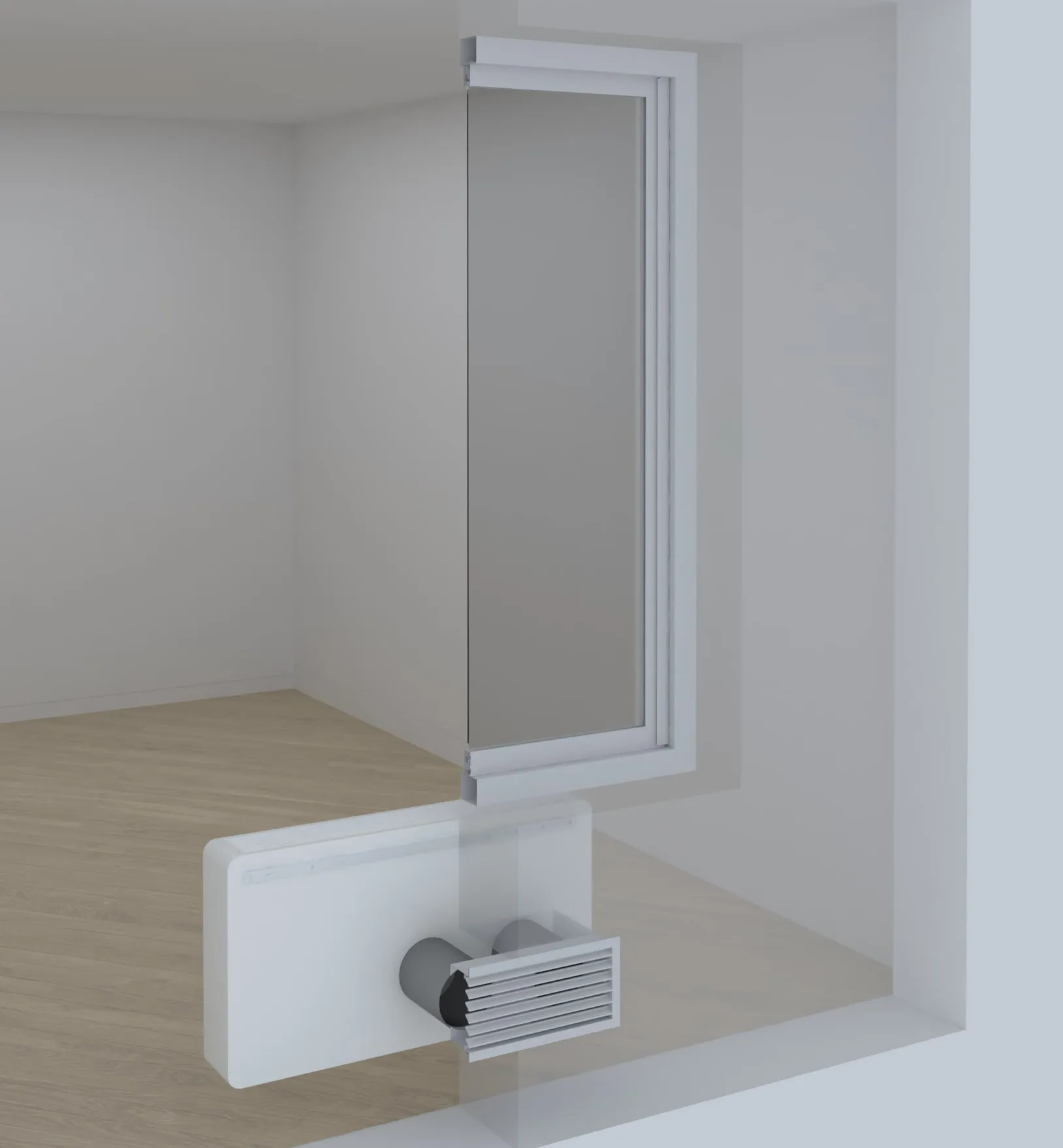

Low wall
Sidewall with adapter

Airflow

Dual 8‑inch external vents
Available 0.25" WC for louvers

Included controls

Onboard touch controller

Optional controllers

WiFi app for Android and iPhone
Wall Mounted Advanced touchscreen with a 7‑day program
Wall Mounted Basic touch controller
Third party thermostat interface
BACnet/Modbus interface

Airflow

In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.

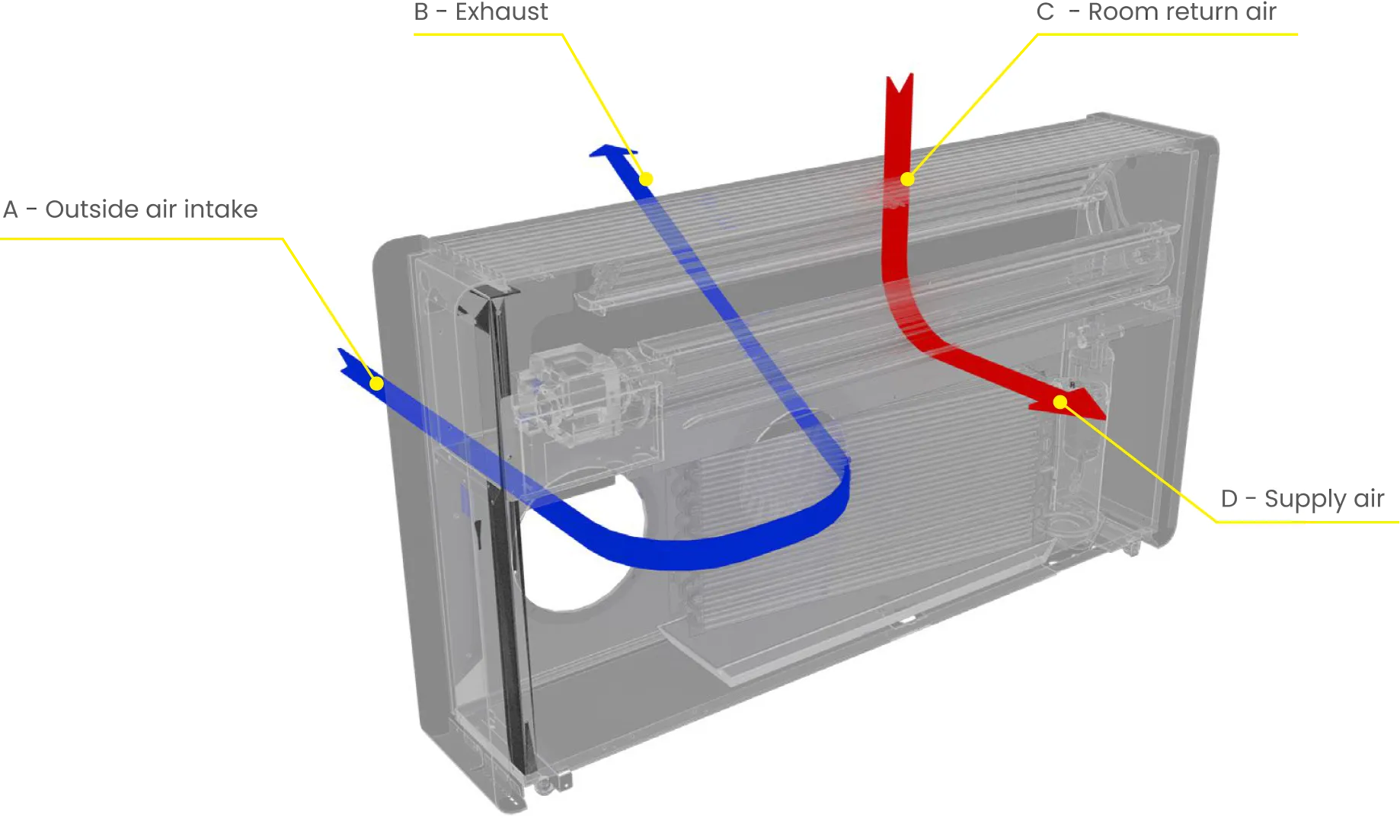

Outside air
Recirculate air

A - Outside air intake

The 8‑inch (adaptable to 6‑inch) outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

B - Outside air exhaust

The 8‑inch (adaptable to 6‑inch) round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

C - Return air

The return air is on the top through the integrated return air grille.

D - Supply air

The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.

Installation

What's Inside

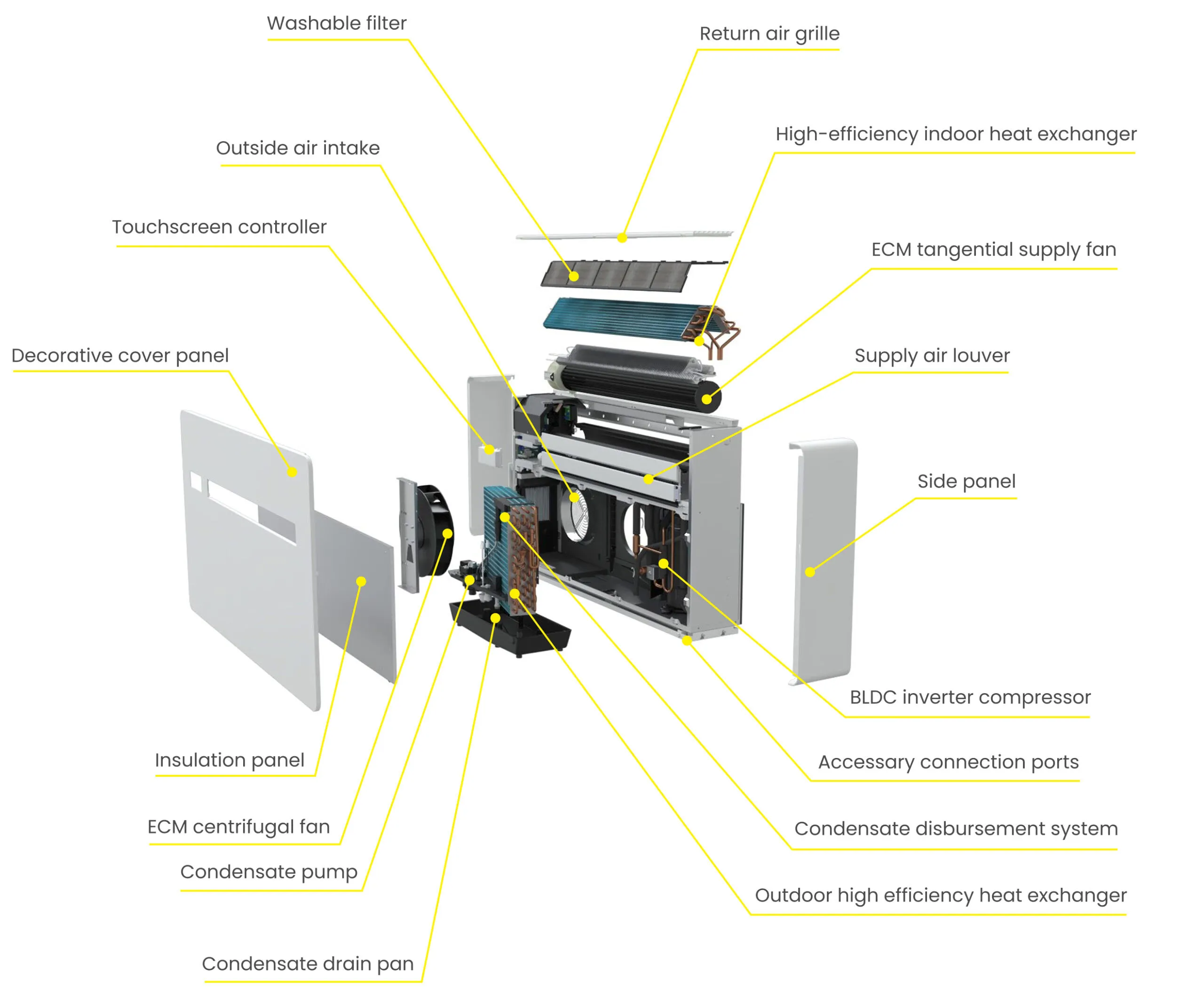

AIO Wall Mounted internal components diagram

Key Specifications

High Performance

Heat Pump only	95°F¹	105°F²	115°F³
Capacity
Maximum (kBtu/h)	10.2	8.0	7.5
Recommended (kBtu/h)*	9.0	7.5	7.1
Nominal (kBtu/h)	7.4	7.3	7.1
Minimum (kBtu/h)	3.3	3.3	3.3
Power Input
Maximum (kW)	1.1	1.00	1.08
Recommended (kW)*	1.05	0.93	0.99
Nominal (kW)	0.81	0.90	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.2	8.0	7.0
Recommended	8.6	8.1	7.2
Nominal	9.2	8.22	7.2
SEER2	13.65
Moisture removal (Pts/h)	1.9	2.1	2.3

1: 95°F; ID: 80°F, W.B. 67°F;; OD: 95°F, W.B. 75°F
2: 105°F; ID: 80°F, W.B. 67°F;; OD: 105°F, W.B. 75°F
3: 115°F; ID: 80°F, W.B. 67°F;; OD: 115°F, W.B. 75°F

* This is the recommended capacity for sizing the unit to the space

Heat Pump only**	47°F¹	17°F²	5°F³	0°F⁴	-5°F⁵
Capacity
Maximum (kBtu/h)	10.1	6.4	6.0	5.7	5.3
Recommended (kBtu/h)*	8.8	5.7	5.9	5.7	5.1
Nominal (kBtu/h)	7.4	5.1	5.3	5.1	4.9
Minimum (kBtu/h)	3.0	3.0	3.0	3.0	3.0
Power Input
Maximum (kW)	1.03	0.97	1.43	1.40	1.32
Recommended (kW)*	0.85	0.87	1.04	1.04	1.07
Nominal (kW)	0.70	0.83	0.91	0.90	0.93
Minimum (kW)	0.23	0.41	0.42	0.43	0.44
Efficiency
Maximum	2.9	1.93	1.2	1.2	1.2
Recommended	3.0	1.92	1.7	1.6	1.4
Nominal	3.1	1.81	1.7	1.7	1.6
Minimum	3.8	2.2	2.1	2.0	2.0
HSPF2	7.1

1: 47°F; ID: 70°F, W.B. 60°F;; OD: 47°F, W.B. 43°F
2: 17°F; ID: 70°F, W.B. 60°F;; OD: 17°F, W.B. 13°F
3: 5°F; ID: 70°F, W.B. 60°F;; OD: 5°F, W.B. 3°F
4: 0°F; ID: 70°F, W.B. 60°F;; OD: 0°F
5: -5°F; ID: 70°F, W.B. 60°F;; OD: -5°F

* This is the recommended capacity for sizing the unit to the space.

** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.

High Efficiency

Heat Pump only	95°F¹	105°F²	115°F³
Capacity
Maximum (kBtu/h)	10.2	8.0	7.5
Recommended (kBtu/h)*	9.0	7.5	7.1
Nominal (kBtu/h)	6.7	7.3	7.1
Minimum (kBtu/h)	3.3	3.3	3.3
Power Input
Maximum (kW)	1.25	1.00	1.08
Recommended (kW)*	1.05	0.93	0.99
Nominal (kW)	0.65	0.90	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.2	8.0	7.0
Recommended	8.6	8.1	7.2
Nominal	10.5	8.22	7.2
SEER2	15.2
Moisture removal (Pts/h)	1.9	2.1	2.3

1: 95°F; ID: 80°F, W.B. 67°F;; OD: 95°F, W.B. 75°F
2: 105°F; ID: 80°F, W.B. 67°F;; OD: 105°F, W.B. 75°F
3: 115°F; ID: 80°F, W.B. 67°F;; OD: 115°F, W.B. 75°F

* This is the recommended capacity for sizing the unit to the space

Heat Pump only**	47°F¹	17°F²	5°F³	0°F⁴	-5°F⁵
Capacity
Maximum (kBtu/h)	10.1	6.4	6.0	5.7	5.3
Recommended (kBtu/h)*	8.8	5.7	5.0	5.7	5.1
Nominal (kBtu/h)	6.7	4.8	4.5	5.1	4.9
Minimum (kBtu/h)	3.0	3.0	3.0	3.0	3.0
Power Input
Maximum (kW)	1.03	0.97	1.43	1.40	1.32
Recommended (kW)*	0.85	0.87	0.86	1.04	1.07
Nominal (kW)	0.59	0.62	0.75	0.90	0.93
Minimum (kW)	0.23	0.41	0.42	0.43	0.44
Efficiency
Maximum	2.9	1.93	1.2	1.2	1.2
Recommended	3.0	1.92	1.7	1.6	1.4
Nominal	3.3	2.27	1.77	1.7	1.6
Minimum	3.8	2.2	2.1	2.0	2.0
HSPF2	8.6

1: 47°F; ID: 70°F, W.B. 60°F;; OD: 47°F, W.B. 43°F
2: 17°F; ID: 70°F, W.B. 60°F;; OD: 17°F, W.B. 13°F
3: 5°F; ID: 70°F, W.B. 60°F;; OD: 5°F, W.B. 3°F
4: 0°F; ID: 70°F, W.B. 60°F;; OD: 0°F
5: -5°F; ID: 70°F, W.B. 60°F;; OD: -5°F

* This is the recommended capacity for sizing the unit to the space.

** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.

High Performance

Heat Pump only	35°C¹	41°C²	46°C³
Capacity
Maximum (kW)	3.0	2.3	2.2
Recommended (kW)*	2.6	2.2	2.1
Nominal (kW)	2.2	2.1	2.1
Minimum (kW)	1.0	1.0	1.0
Power Input
Maximum (kW)	1.1	1.00	1.08
Recommended (kW)*	1.05	0.93	0.99
Nominal (kW)	0.81	0.90	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.2	8.0	7.0
Recommended	8.6	8.1	7.2
Nominal	9.2	8.22	7.2
SEER2	13.65
Moisture removal (L/h)	0.9	1.0	1.1

1: 35°C; ID: 26.7°C, W.B. 19.4°C;; OD: 35°C, W.B. 23.9°C
2: 41°C; ID: 26.7°C, W.B. 19.4°C;; OD: 40.6°C, W.B. 23.9°C
3: 48°C; ID: 26.7°C, W.B. 19.4°C;; OD: 46.1°C, W.B. 23.9°C

* This is the recommended capacity for sizing the unit to the space

Heat Pump only**	8°C¹	-8°C²	-15°C³	-17°C⁴	-20°C⁵
Capacity
Maximum (kW)	2.9	1.9	1.8	1.7	1.6
Recommended (kW)*	2.6	1.7	1.7	1.7	1.5
Nominal (kW)	2.2	1.5	1.6	1.5	1.4
Minimum (kW)	0.9	0.9	0.9	0.9	0.9
Power Input
Maximum (kW)	1.03	0.97	1.43	1.40	1.32
Recommended (kW)*	0.85	0.87	1.04	1.04	1.07
Nominal (kW)	0.70	0.83	0.91	0.90	0.93
Minimum (kW)	0.23	0.41	0.42	0.43	0.44
Efficiency
Maximum	2.9	1.93	1.2	1.2	1.2
Recommended	3.0	1.92	1.7	1.6	1.4
Nominal	3.1	1.81	1.7	1.7	1.6
Minimum	3.8	2.2	2.1	2.0	2.0
HSPF2	7.1

1: 8°C; ID: 21.1°C, W.B. 15.6°C;; OD: 8.3°C, W.B. 6.1°C
2: -8°C; ID: 21.1°C, W.B. 15.6°C;; OD: -8.3°C, W.B. 1-10.6°C
3: -15°C; ID: 21.1°C, W.B. 15.6°C;; OD: -15°C, W.B. -16.1°C
4: -17°C; ID: 21.1°C, W.B. 15.6°C;; OD: -17.8°C
5: -20°C; ID: 21.1°C, W.B. 15.6°C;; OD:-20.6°C

* This is the recommended capacity for sizing the unit to the space.

** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.

High Efficiency

Heat Pump only	35°C¹	41°C²	46°C³
Capacity
Maximum (kW)	3.0	2.3	2.2
Recommended (kW)*	2.6	2.2	2.1
Nominal (kW)	2.0	2.1	2.1
Minimum (kW)	1.0	1.0	1.0
Power Input
Maximum (kW)	1.1	1.00	1.08
Recommended (kW)*	1.05	0.93	0.99
Nominal (kW)	0.65	0.90	0.99
Minimum (kW)	0.21	0.24	0.27
Efficiency
Maximum	8.2	8.0	7.0
Recommended	8.6	8.1	7.2
Nominal	10.5	8.22	7.2
SEER2	15.2
Moisture removal (L/h)	0.9	1.0	1.1

1: 35°C; ID: 26.7°C, W.B. 19.4°C;; OD: 35°C, W.B. 23.9°C
2: 41°C; ID: 26.7°C, W.B. 19.4°C;; OD: 40.6°C, W.B. 23.9°C
3: 48°C; ID: 26.7°C, W.B. 19.4°C;; OD: 46.1°C, W.B. 23.9°C

* This is the recommended capacity for sizing the unit to the space.

Heat Pump only**	8°C¹	-8°C²	-15°C³	-17°C⁴	-20°C⁵
Capacity
Maximum (kW)	2.9	1.9	1.8	1.7	1.6
Recommended (kW)*	2.6	1.7	1.5	1.7	1.5
Nominal (kW)	2.0	1.4	1.3	1.5	1.4
Minimum (kW)	0.9	0.9	0.9	0.9	0.9
Power Input
Maximum (kW)	1.03	0.97	1.43	1.40	1.32
Recommended (kW)*	0.85	0.87	0.86	1.04	1.07
Nominal (kW)	0.59	0.62	0.75	0.90	0.93
Minimum (kW)	0.23	0.41	0.42	0.43	0.44
Efficiency
Maximum	2.9	1.93	1.2	1.2	1.2
Recommended	3.0	1.92	1.7	1.6	1.4
Nominal	3.3	2.27	1.77	1.7	1.6
Minimum	3.8	2.2	2.1	2.0	2.0
HSPF2	8.6

1: 8°C; ID: 21.1°C, W.B. 15.6°C;; OD: 8.3°C, W.B. 6.1°C
2: -8°C; ID: 21.1°C, W.B. 15.6°C;; OD: -8.3°C, W.B. 1-10.6°C
3: -15°C; ID: 21.1°C, W.B. 15.6°C;; OD: -15°C, W.B. -16.1°C
4: -17°C; ID: 21.1°C, W.B. 15.6°C;; OD: -17.8°C
5: -20°C; ID: 21.1°C, W.B. 15.6°C;; OD:-20.6°C
