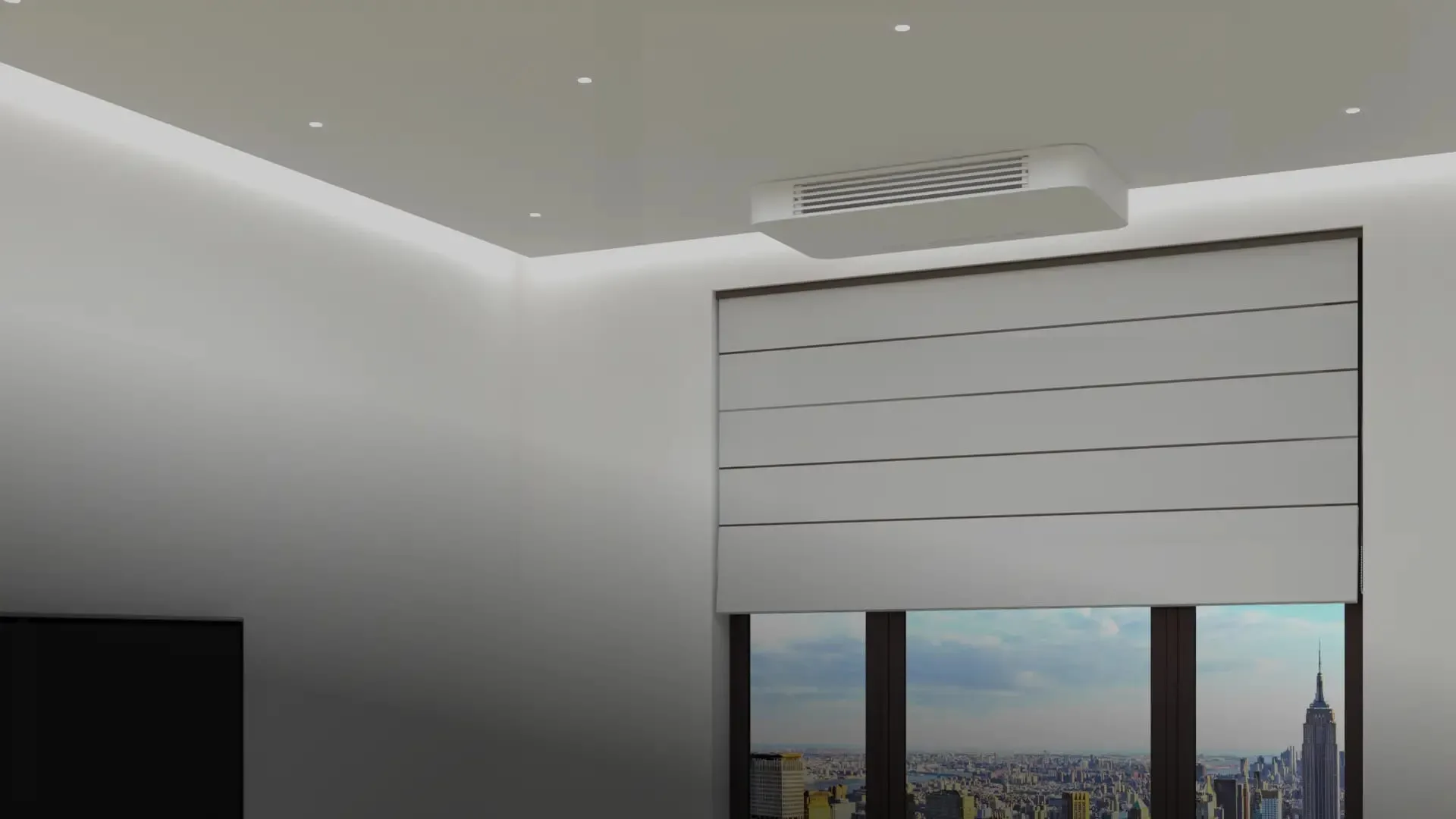

OSMO Ceiling Suspended unit below a ceiling

OSMO Ceiling Suspended

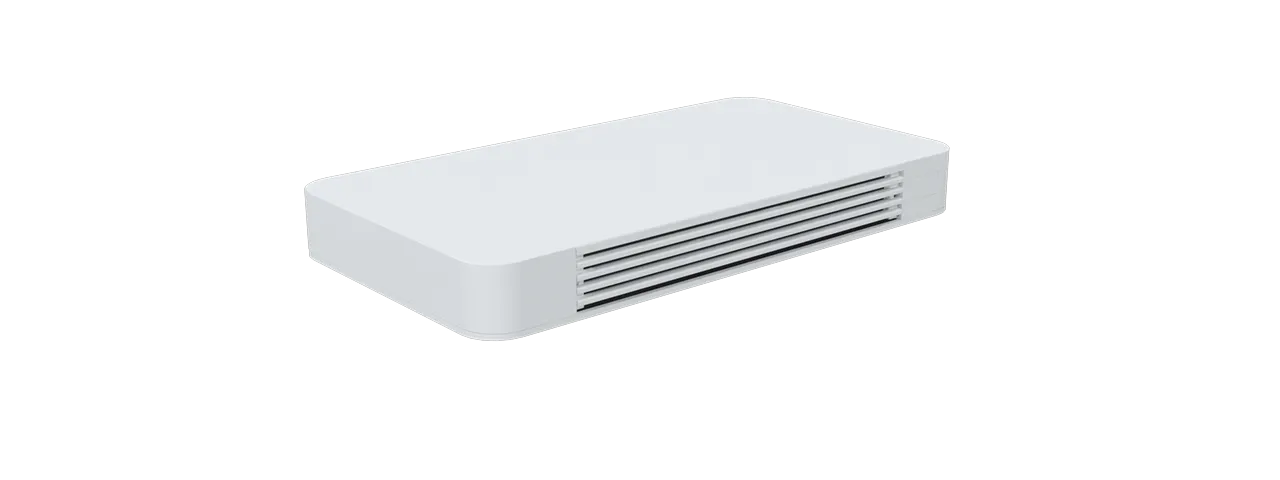

OSMO Ceiling Suspended unit render

Discreet overhead heating

The OSMO Ceiling Suspended fan coil discreetly hangs from the ceiling, making it ideal for applications where an elevated unit is preferred, such as dormitories, budget apartments, hotels, or spaces with limited accessibility. Its sleek, slim design features a paintable all-metal cabinet just under five inches high that integrates seamlessly into the ceiling.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

  • Compact slim cabinet
  • Easy to install
  • Paintable all-metal cabinet
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

Options

  • LCDI power cord
  • Custom factory colors

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2‑pipe
  • Can connect to low temperature 4 pipe systems with optional 6‑way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Ceiling

Airflow

  • Supply air straight out (horizontal)
  • Return air is on bottom

Controller Options

  • Wireless remote
  • WiFi app for Android and iPhone
  • Onboard touch controller
  • Centralized control
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Dimensions

OSMO Ceiling Suspended dimensioned drawing
ModelCS4CS8CS10CS12CS14
L (in)2936.844.652.560.4
ModelCS4CS8CS10CS12CS14
L (mm)737935113313341534

Technical Specifications

Cooling
CS4CS8CS10CS12CS14
Total (MBh)3.17.29.611.312.7
Sensible (MBh)2.55.97.29.29.9
Water flow (GPM)41.596.4127.6150.0168.5
Pressure (Ft H2O)4.02.75.76.07.1
Heating
CS4CS8CS10CS12CS14
Capacity (MBh)3.57.510.313.014.7
Water flow (GPM)46.2100.4137.1173.0196.3
Pressure (Ft H2O)3.03.16.47.17.8
Airflow
CS4CS8CS10CS12CS14
High (CFM)86173258334390
Medium (CFM)53124187241282
Low (CFM)2969106145154
Static pressure (In W.C.)0.040.040.050.050.05
Cooling
CS4CS8CS10CS12CS14
Total (kW)0.92.12.83.33.7
Sensible (kW)0.71.72.12.72.9
Water flow (L)157.1364.9483.0567.8637.8
Pressure (kPa)12.08.117.017.921.2
Heating
CS4CS8CS10CS12CS14
Capacity (kW)1.02.23.03.84.3
Water flow (L)174.9380.1519.0654.9743.1
Pressure (kPa)9.09.319.121.223.3
Airflow
CS4CS8CS10CS12CS14
High (m³/h)146294438567663
Medium (m³/h)90211318409479
Low (m³/h)49117180246262
Static pressure (Pa)1010121212
