OSMO High Wall

Slim design, built for specifiers

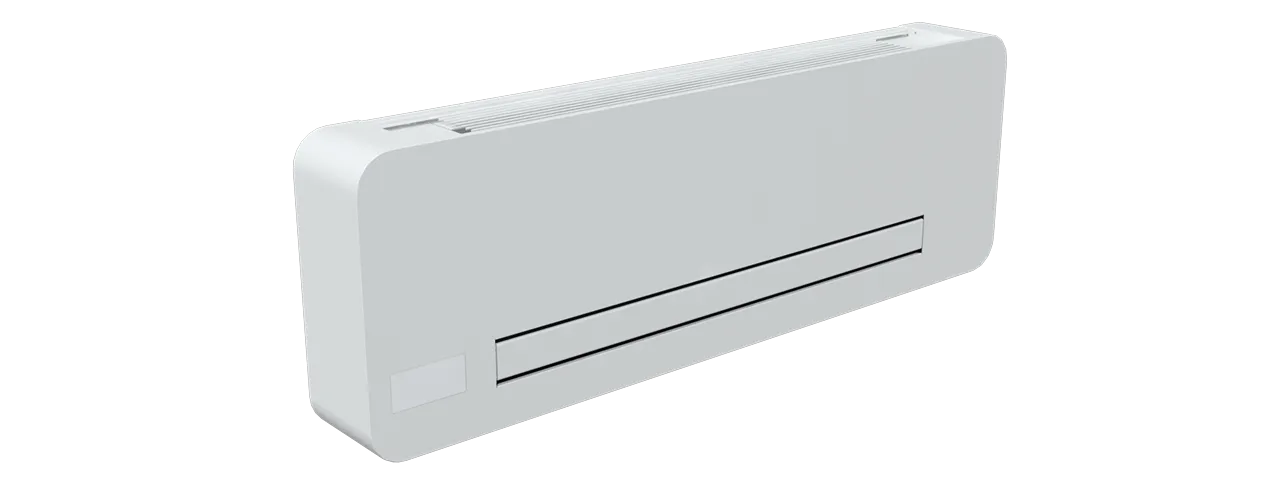

The versatile OSMO High Wall fan coil, just 5 inches deep, boasts clean lines and a slim design that caters to the preferences of building owners, specifying engineers, and contractors. A super quiet tangential fan sits within a specialized structure that minimizes vibration and optimizes performance, achieving and maintaining the desired temperature swiftly and silently.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

Super low profile
Easy to install
Paintable all-metal cabinet
Auto-restart
Washable filters

Options

LCDI power cord
Custom factory colors

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto

Connection

2‑pipe
Can connect to low temperature 4 pipe systems with optional 6‑way valve
Available in 1/2 or 3/4 connections

Mounting

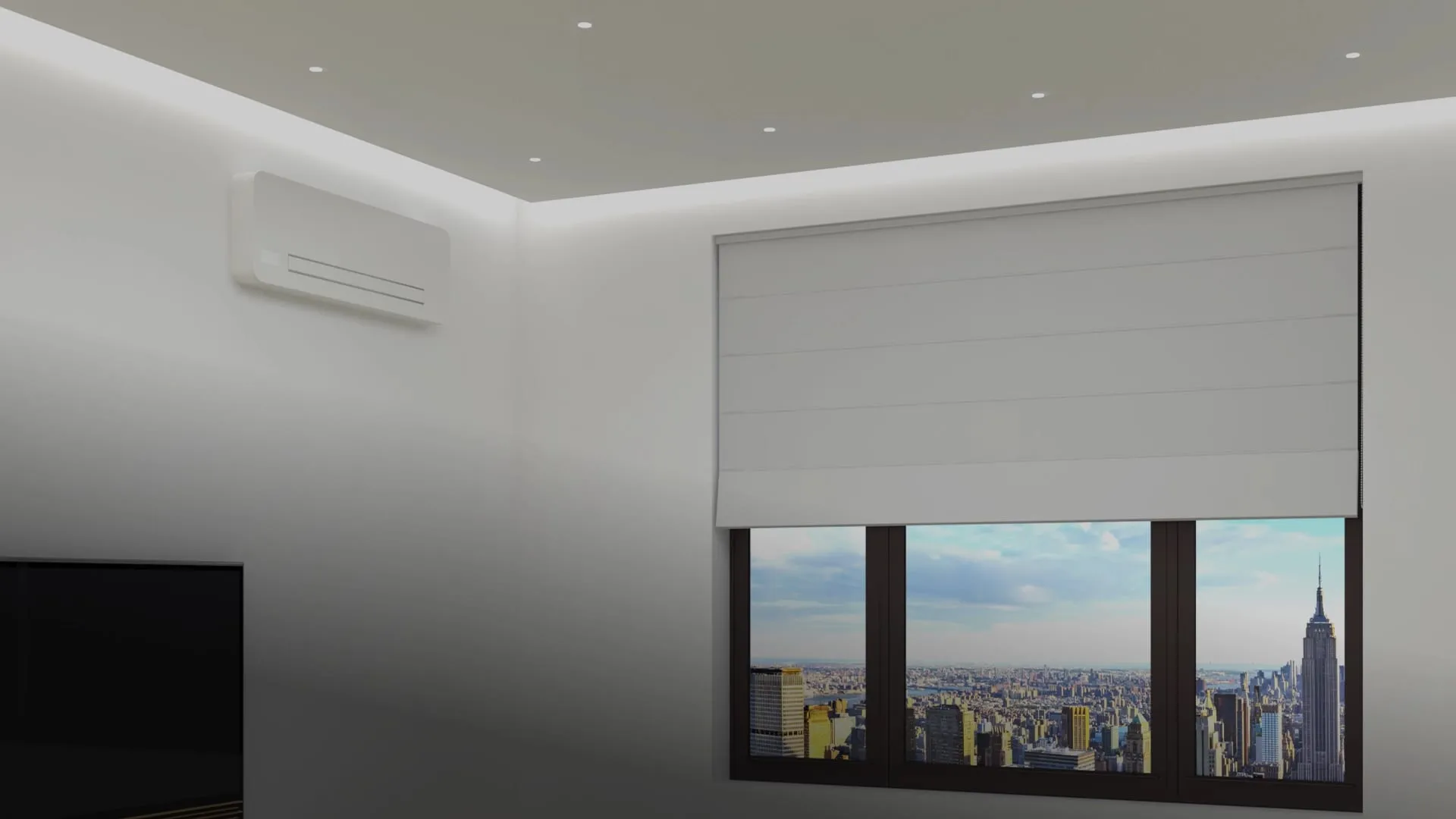

High wall mount

Airflow

Supply air managed by electronically controlled louver on front
Return air is on the top

Controller Options

Wireless remote
WiFi app for Android and iPhone
Centralized control
Wall Mounted touch controller
Third party thermostat interface
BACnet/Modbus interface

Easy Installation

OSMO High Wall open unit with installation callouts

ASlim depth
Compared with typical units, the slim depth is substantially less. This is an exceptional technical result that, combined with the sound level and performance, allows perfect positioning in any environment.
BDisplay touch screen
Wide, easy to understand and to use: no difficulty in selecting any possible request for the best comfort.
CLeft or right connection
The default configuration places hydraulic connections on the right, switchable to the left for the 400, 600, and 800 models during factory setup.

Technical Specifications

Cooling

	HW4	HW6	HW8	HW12
Total (MBh)	4.23	5.49	6.62	10.65
Sensible (MBh)	3.34	4.33	5.19	8.56
Water flow (GPM)	54.9	73.7	96.4	141.9
Pressure (Ft H2O)	3.9	1.7	1.8	3.8

Heating

	HW4	HW6	HW8	HW12
Capacity (MBh)	5.12	6.86	8.02	11.77
Water flow (GPM)	69	92	119	157
Pressure (Ft H2O)	5.45	2.41	2.71	4.18

Airflow

	HW4	HW6	HW8	HW12
High (CFM)	134	195	259	464
Medium (CFM)	91	135	167	283
Low (CFM)	49	73	81	135
Static pressure (In W.C.)	0.04	0.04	0.04	0.04

Cooling

	HW4	HW6	HW8	HW12
Total (kW)	1.2	1.6	1.9	3.1
Sensible (kW)	1.0	1.3	1.5	2.5
Water flow (L)	207.8	279.0	364.9	537.1
Pressure (kPa)	11.7	5.1	5.4	11.4

Heating

	HW4	HW6	HW8	HW12
Capacity (kW)	1.5	2.0	2.4	3.4
Water flow (L)	261.2	348.3	450.5	594.3
Pressure (kPa)	16.3	7.2	8.1	12.5

Airflow

	HW4	HW6	HW8	HW12
High (m³/h)	228	331	440	788
Medium (m³/h)	155	229	284	481
Low (m³/h)	83	124	138	229
Static pressure (Pa)	10	10	10	10

Download Full PDF
