ERV Module

For Wall Mounted and Wall Mounted Pro

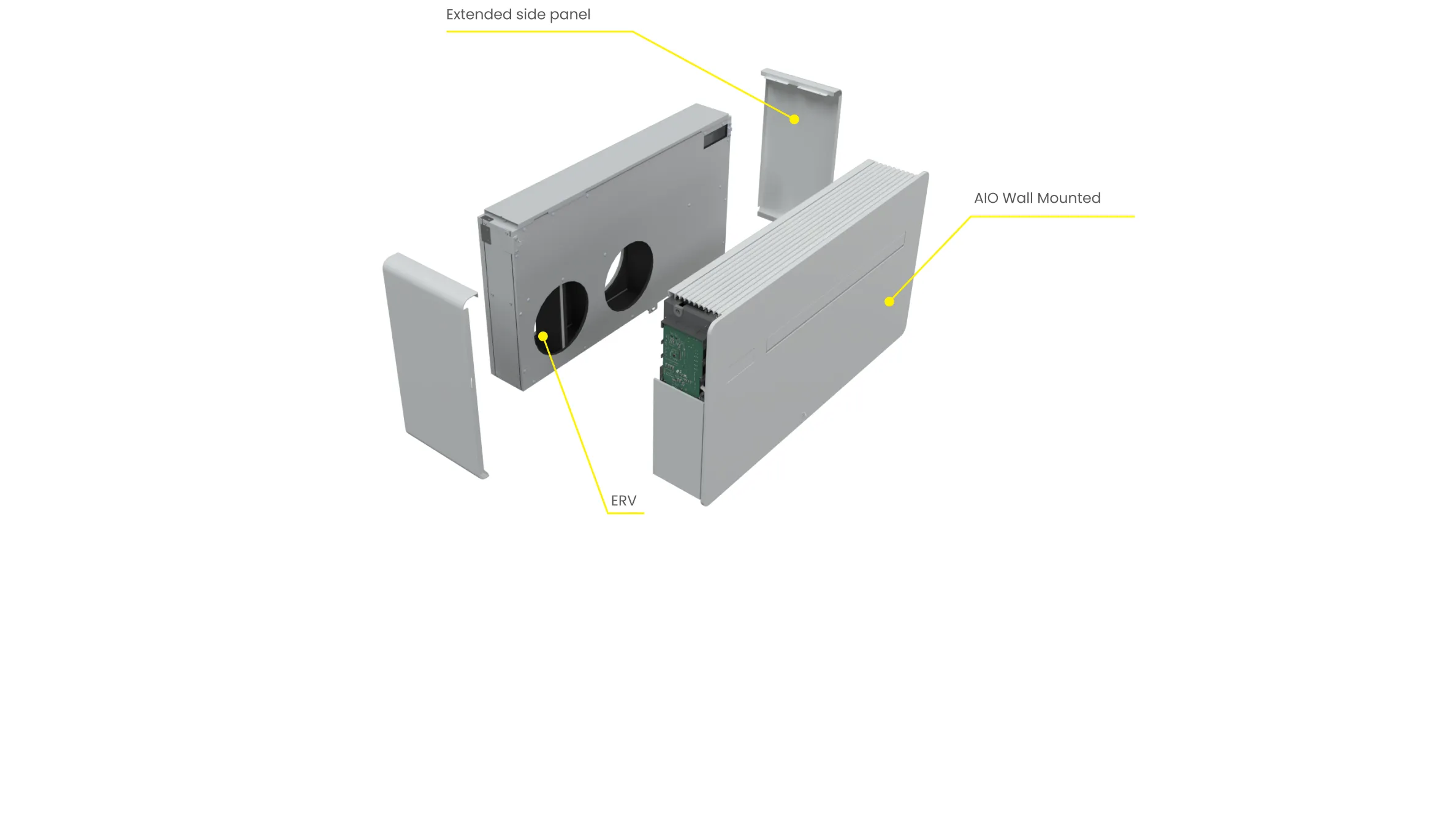

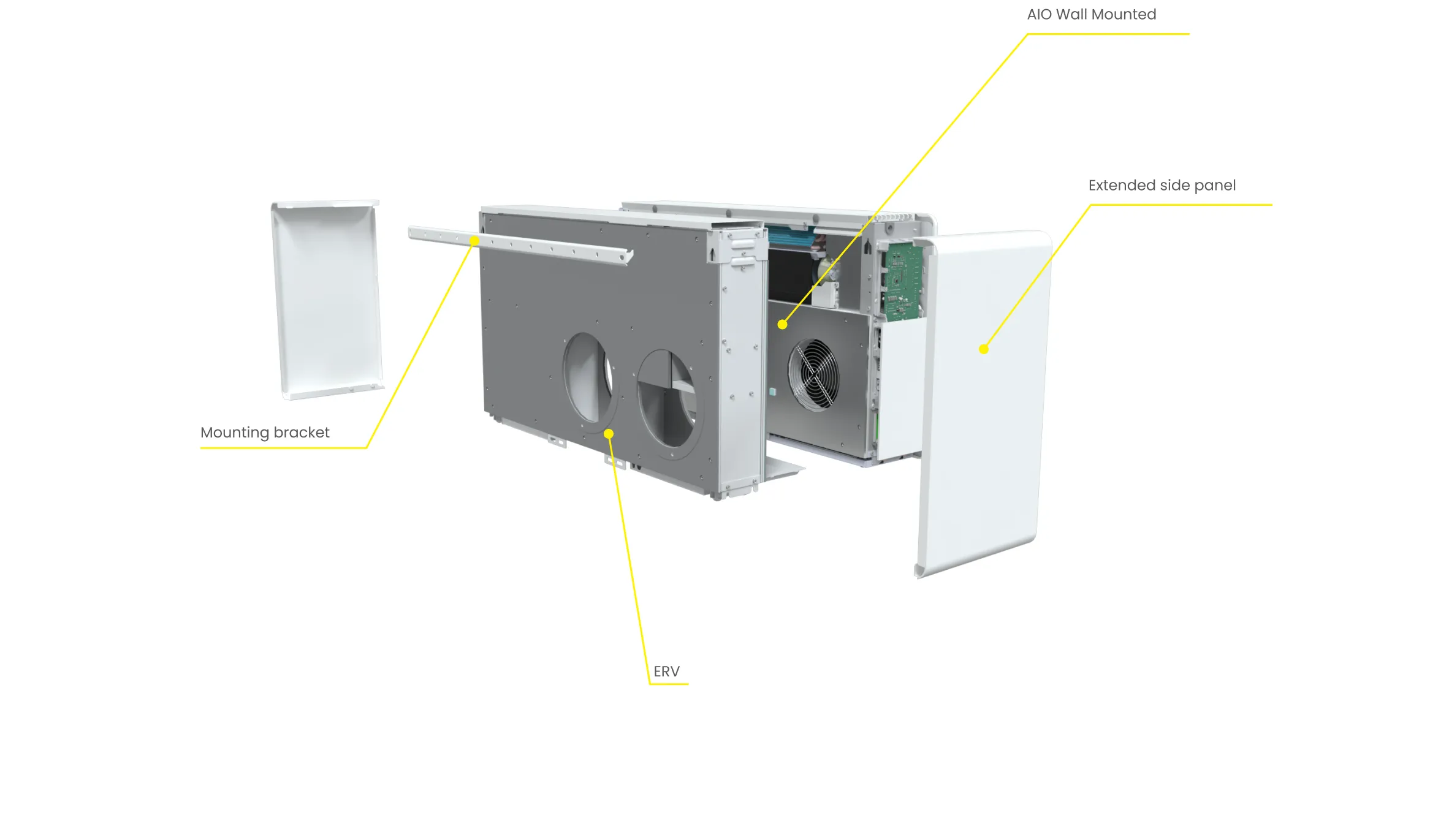

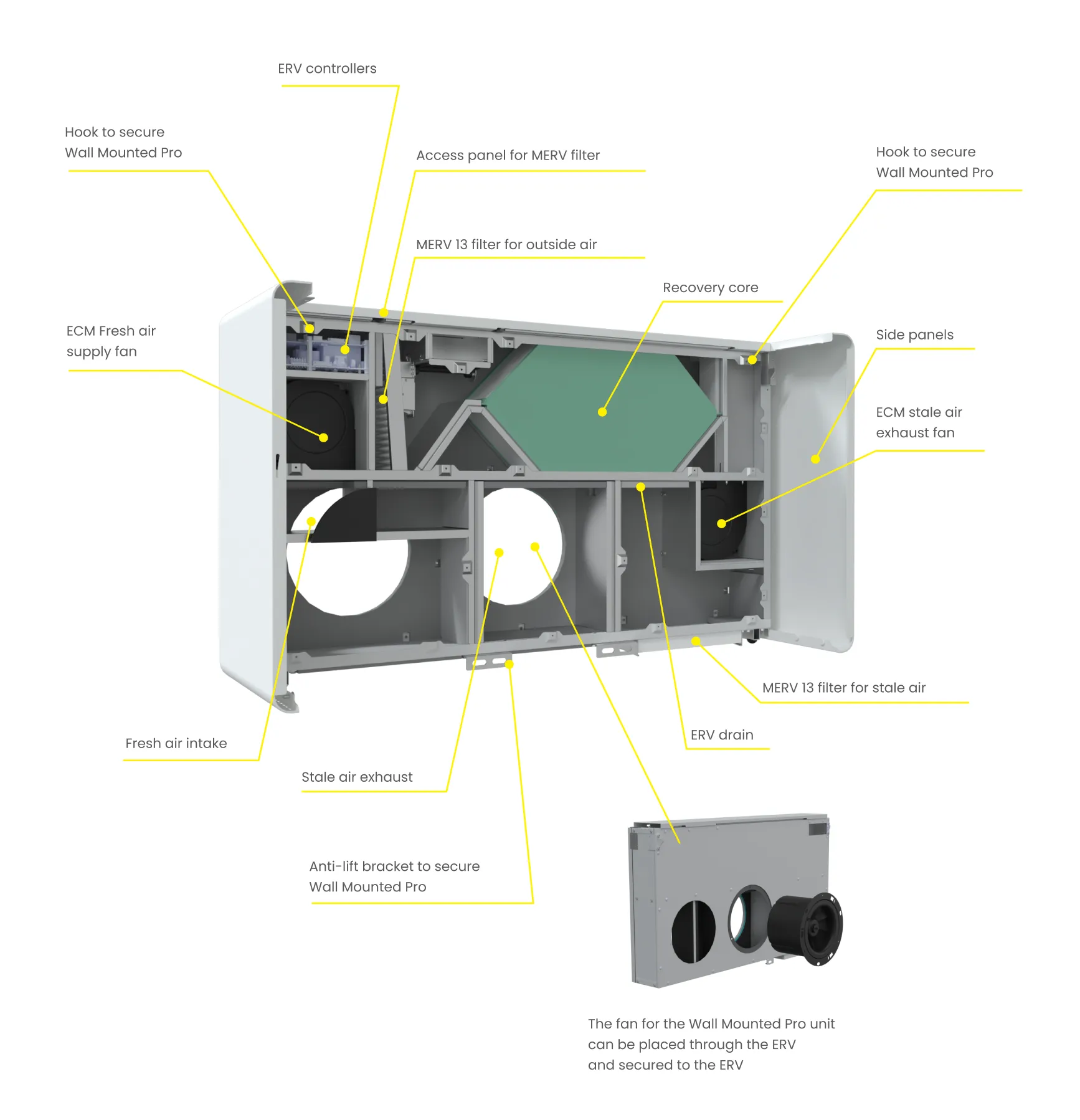

The ERV module is designed for compatibility with the Wall Mounted and Wall Mounted Pro units. It attaches securely to the back of these units using the existing holes, so no additional openings are required. The ERV module is controlled and powered by the Wall Mounted and Wall Mounted Pro units. It features two MERV 13 filters to ensure clean air and provides up to 25 CFM of fresh air.

Key Features

Compact unit
Easy to install
Paintable sleek cabinet
Controlled and powered by Wall Mounted or Wall Mounted Pro
Auto-restart
MERV13 filters

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto
Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)

Mounting

High wall
Low wall
Sidewall with adapter

Airflow

Up to 30 CFM

Included controls

Controlled by the Wall Mounted or Wall Mounted Pro

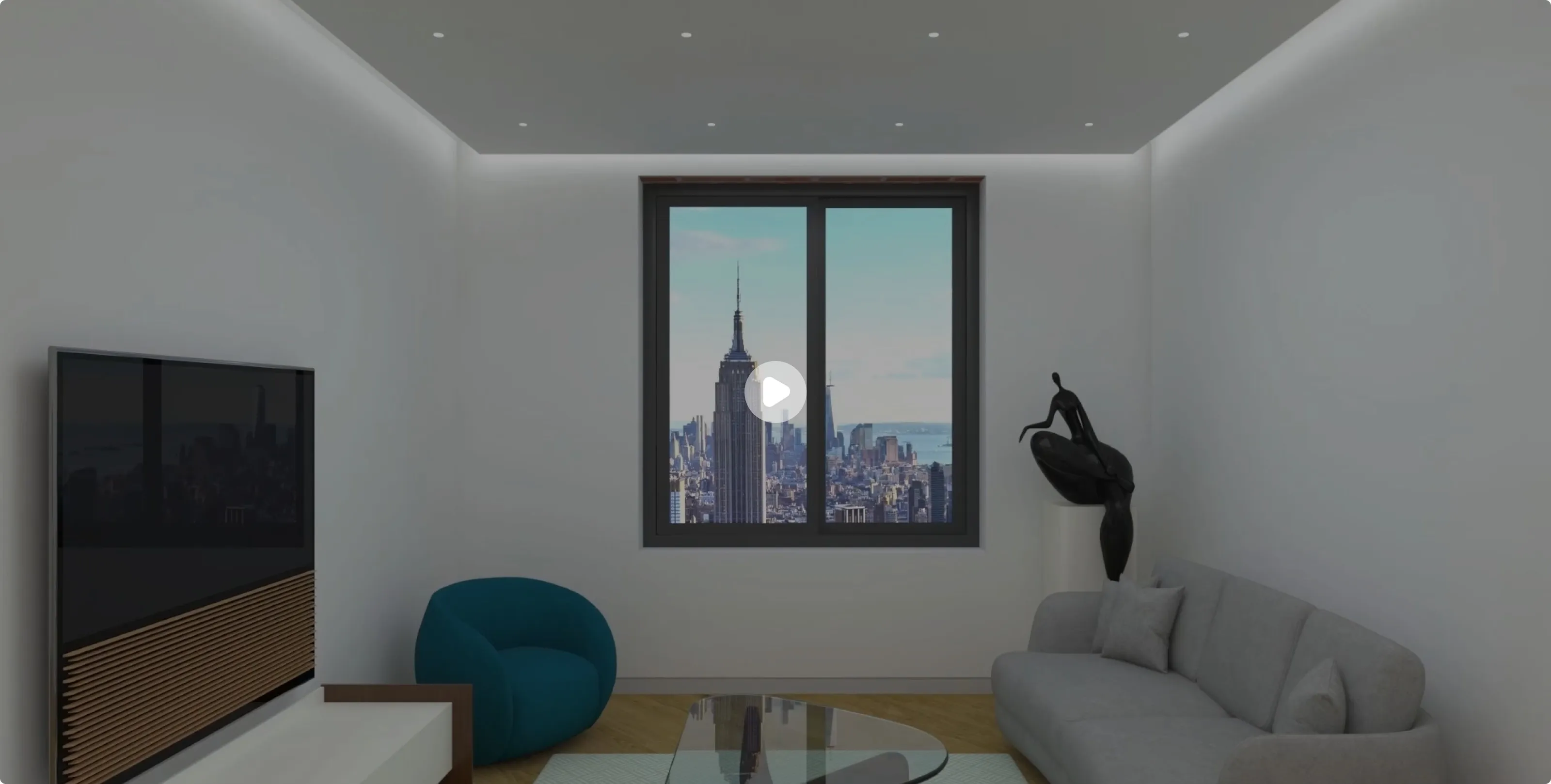

A living room with the AIO unit installed

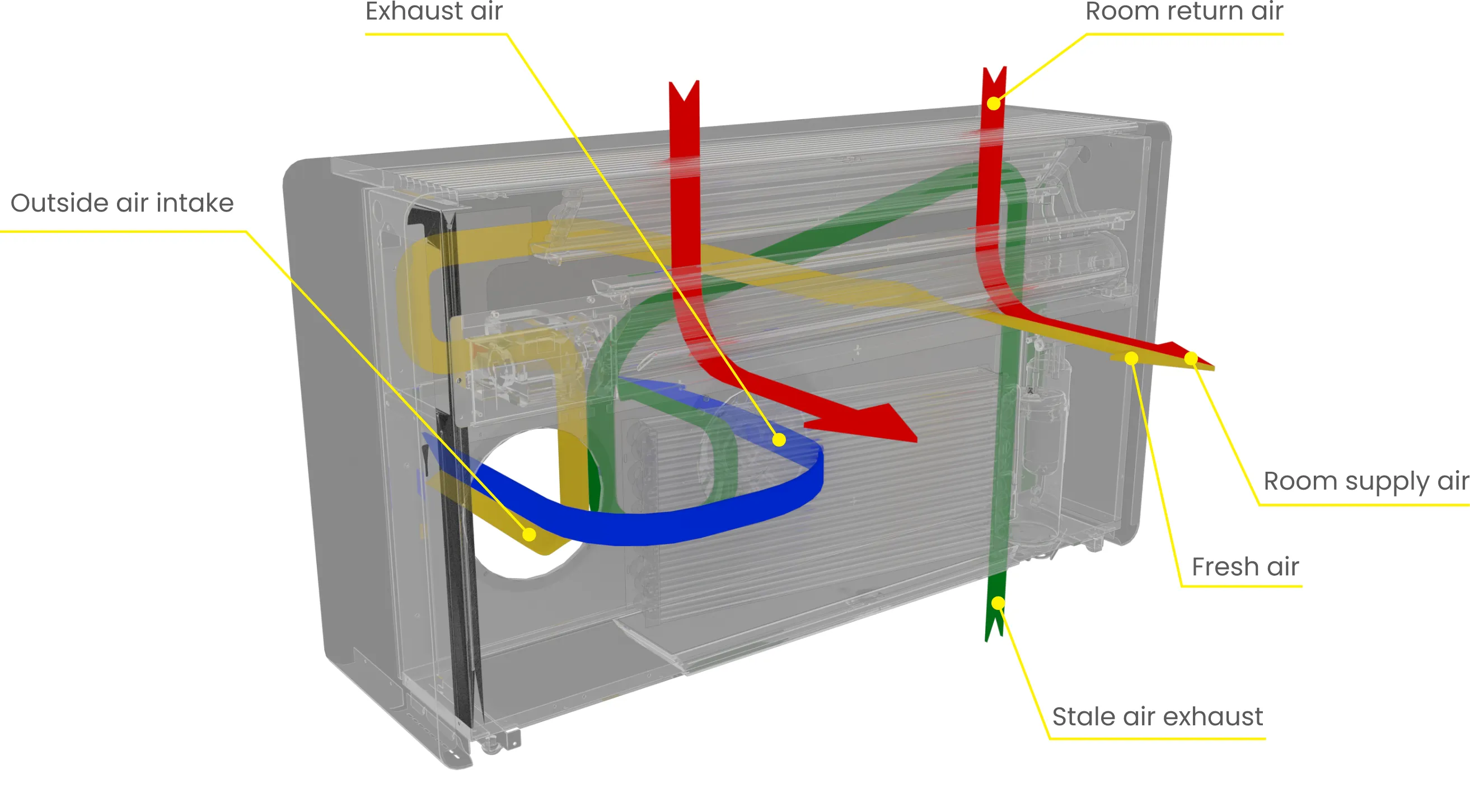

Airflow

AIO ERV Module is extraordinarily flexible in how it can externally vent as it uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.

Outside air
Recirculate air
Fresh air intake
Stale air exhaust

AOutside air intake
The 6 or 8‑inch round outside air intake connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
BOutside air exhaust
The 6 or 8‑inch round exhaust connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
