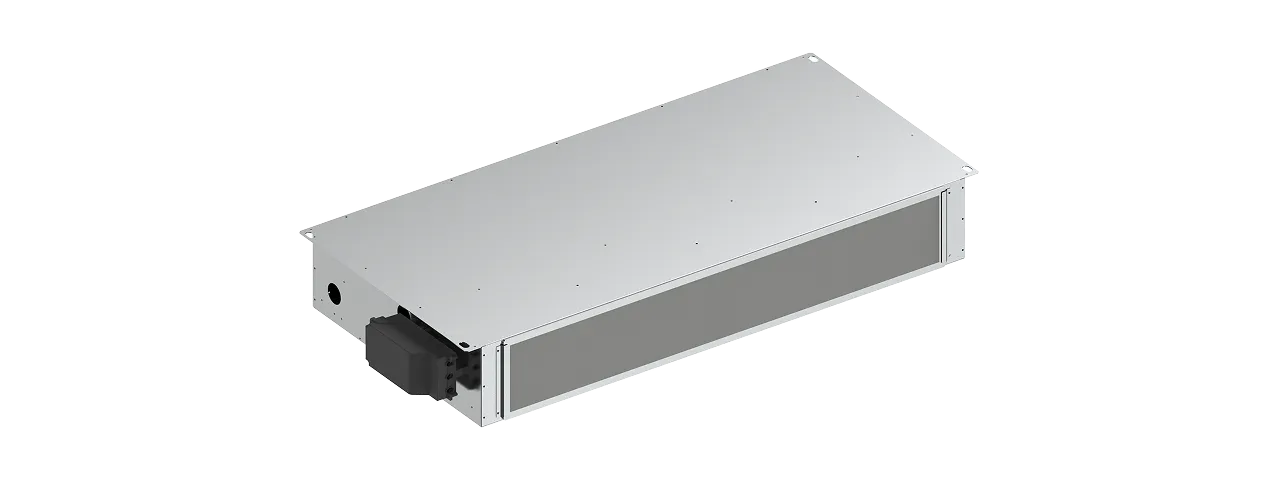

OSMO Horizontal Ducted

Hidden above the ceiling

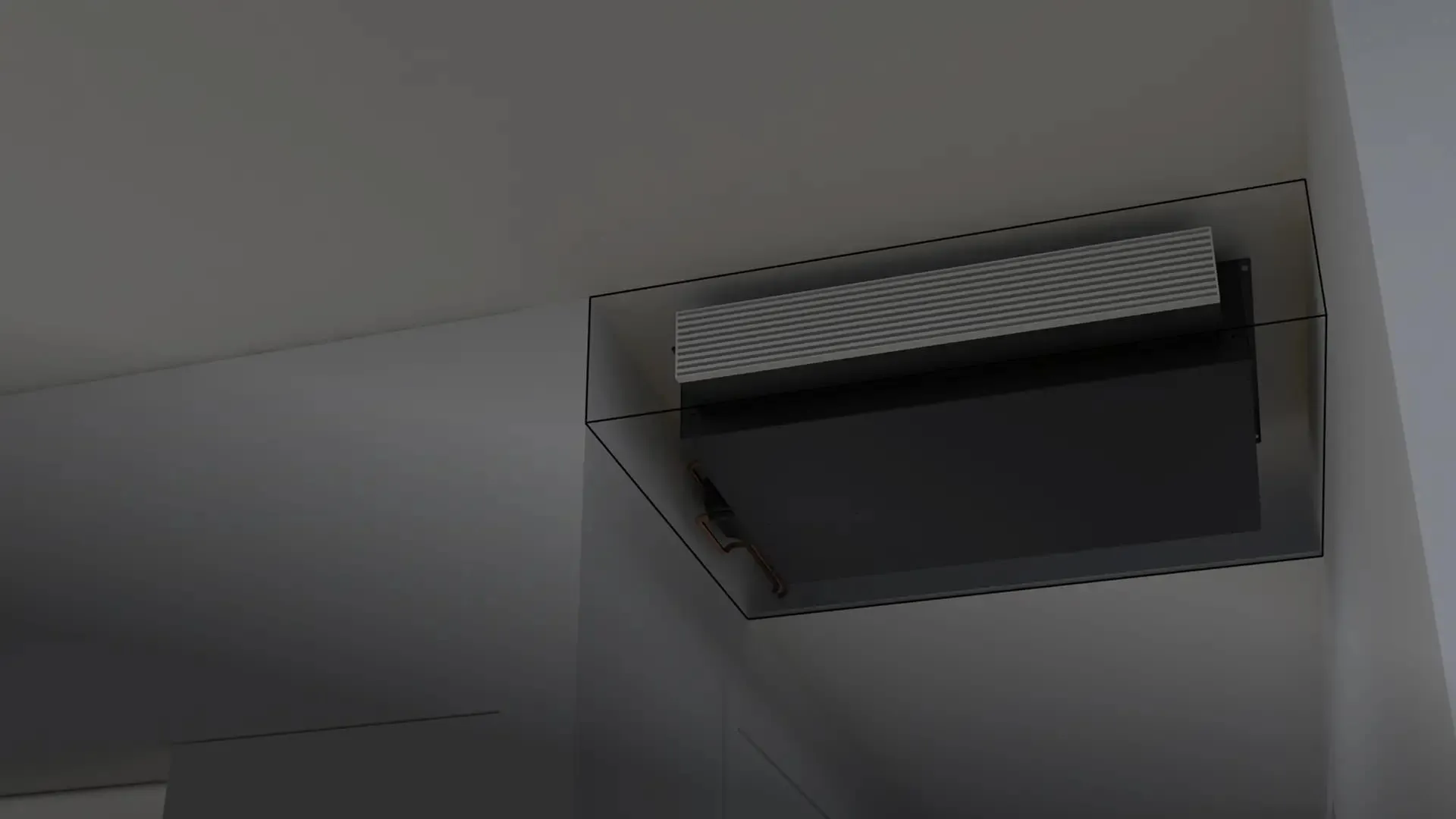

OSMO Horizontal Ducted fan coils can be discreetly installed above a false ceiling or closet for the highest level of aesthetics, where only a supply and return grille are visible. A whisper quiet tangential fan minimizes vibration while optimizing performance, achieving and maintaining temperature swiftly and silently.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

Compact unit - under 10‑inches deep
Easy to install
High ESP for internal ducting
Bottom or rear returns
Auto-restart
Washable filters

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto

Connection

2‑pipe
Can connect to low temperature 4 pipe systems with optional 6‑way valve
Available in 1/2 or 3/4 connections

Mounting

Ceiling
Underfloor

Airflow

Available 0.6' WC for internal ducting and grilles

Included controls

WiFi app for Android and iPhone
Centralized control
Wall Mounted Basic touch controller
Third party thermostat interface
BACnet/Modbus interface

The Smart Horizontal Fan Coil

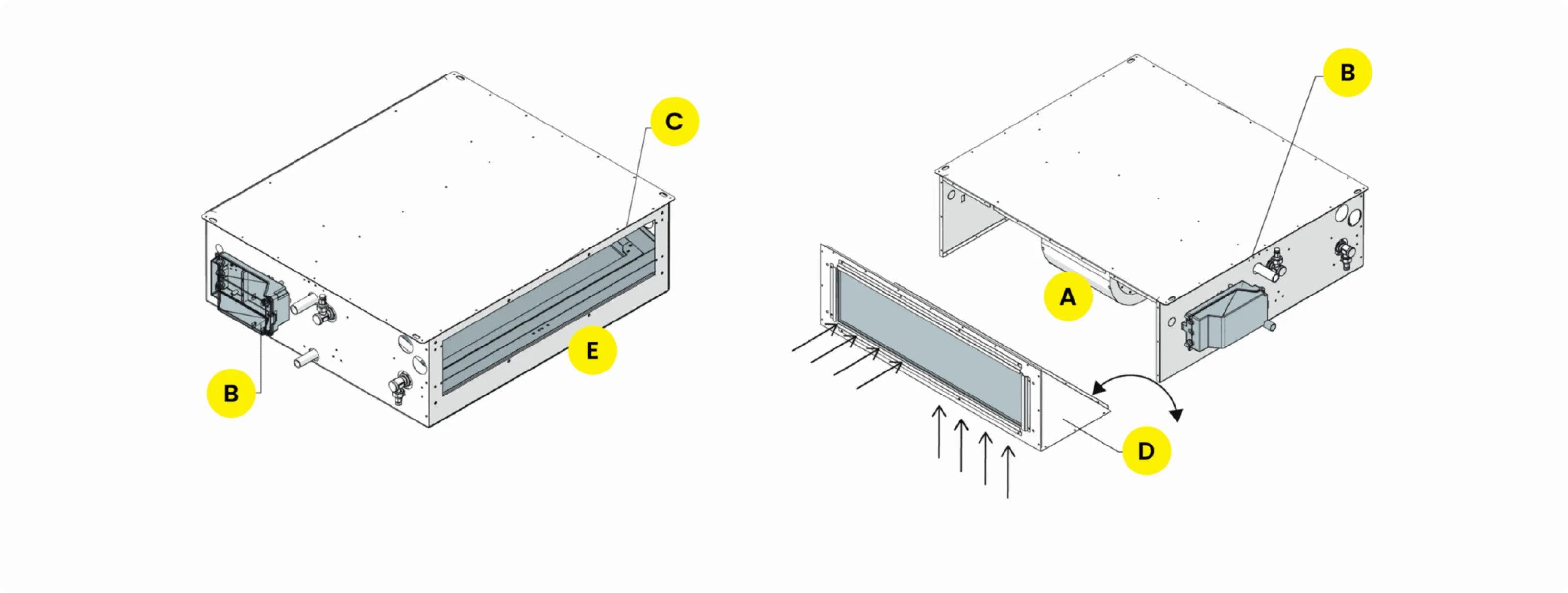

OSMO Horizontal Ducted labeled component views

AFan
The unit is equipped with a centrifugal fan and low consumption DC inverter motor and integrated control.
BElectrical box
Electrical box excluded from the air flow, with electronic main board control.
CHeat Exchanger
Copper aluminum water to air heat exchanger with hydrophilic treatment fins.
DReversible return with air filter
The return intake air can be from the bottom or rear.
EHorizontal Condensate Tray
Allows the collection of condensate.

Technical Specifications

Cooling

	HD6	HD8	HD10	HD12	HD20
Total (MBh)	4.8	7.2	8.9	11.3	15.2
Sensible (MBh)	3.6	5.1	7.2	8.4	10.9
Water flow (GPM)	71.3	107	134.7	161.1	212.7
Pressure (Ft H2O)	1.7	2.7	5.7	3.7	4.7

Heating

	HD6	HD8	HD10	HD12	HD20
Capacity (MBh)	5.6	7.2	9.8	12.7	17.7
Water flow (GPM)	81.9	116.2	142.7	192.8	232.5
Pressure (Ft H2O)	2	3	6	4.3	5

Airflow

	HD6	HD8	HD10	HD12	HD20
High (CFM)	171	230	324	400	512
Medium (CFM)	118	171	230	265	359
Low (CFM)	53	82.4	112	135	147
Static pressure (In W.C.)	0.4	0.4	0.5	0.4	0.6

Cooling

	HD6	HD8	HD10	HD12	HD20
Total (kW)	1.4	2.1	2.6	3.3	4.5
Sensible (kW)	1.1	1.5	2.1	2.5	3.2
Water flow (L)	269.9	405.0	509.9	609.8	805.2
Pressure (kPa)	5.1	8.1	17.0	11.1	14.0

Heating

	HD6	HD8	HD10	HD12	HD20
Capacity (kW)	1.6	2.1	2.9	3.7	5.2
Water flow (L)	310.0	439.9	540.2	729.8	880.1
Pressure (kPa)	6.0	9.0	17.9	12.9	14.9

Airflow

	HD6	HD8	HD10	HD12	HD20
High (m³/h)	291	391	550	680	870
Medium (m³/h)	200	291	391	450	610
Low (m³/h)	90	140	190	229	250
Static pressure (Pa)	100	100	125	100	149
