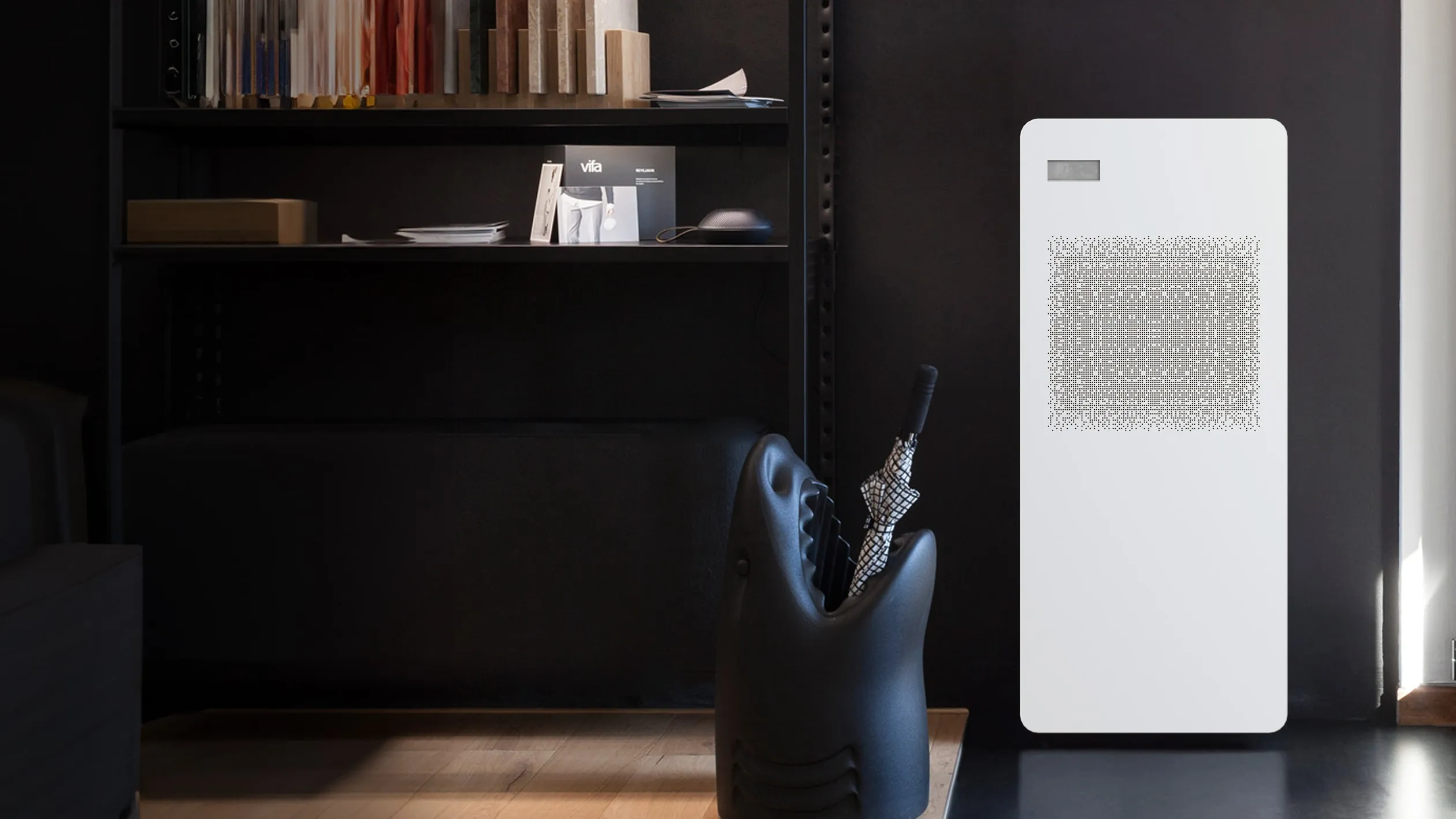

This unit fortifies our commitment to providing a complete range of products that allow you to find the right model for every type of installation. The AIO Floor Standing unit is just 19.7 inches wide and is a perfect fit between two windows or at an angle. The onboard touch controller simplifies use and installation.

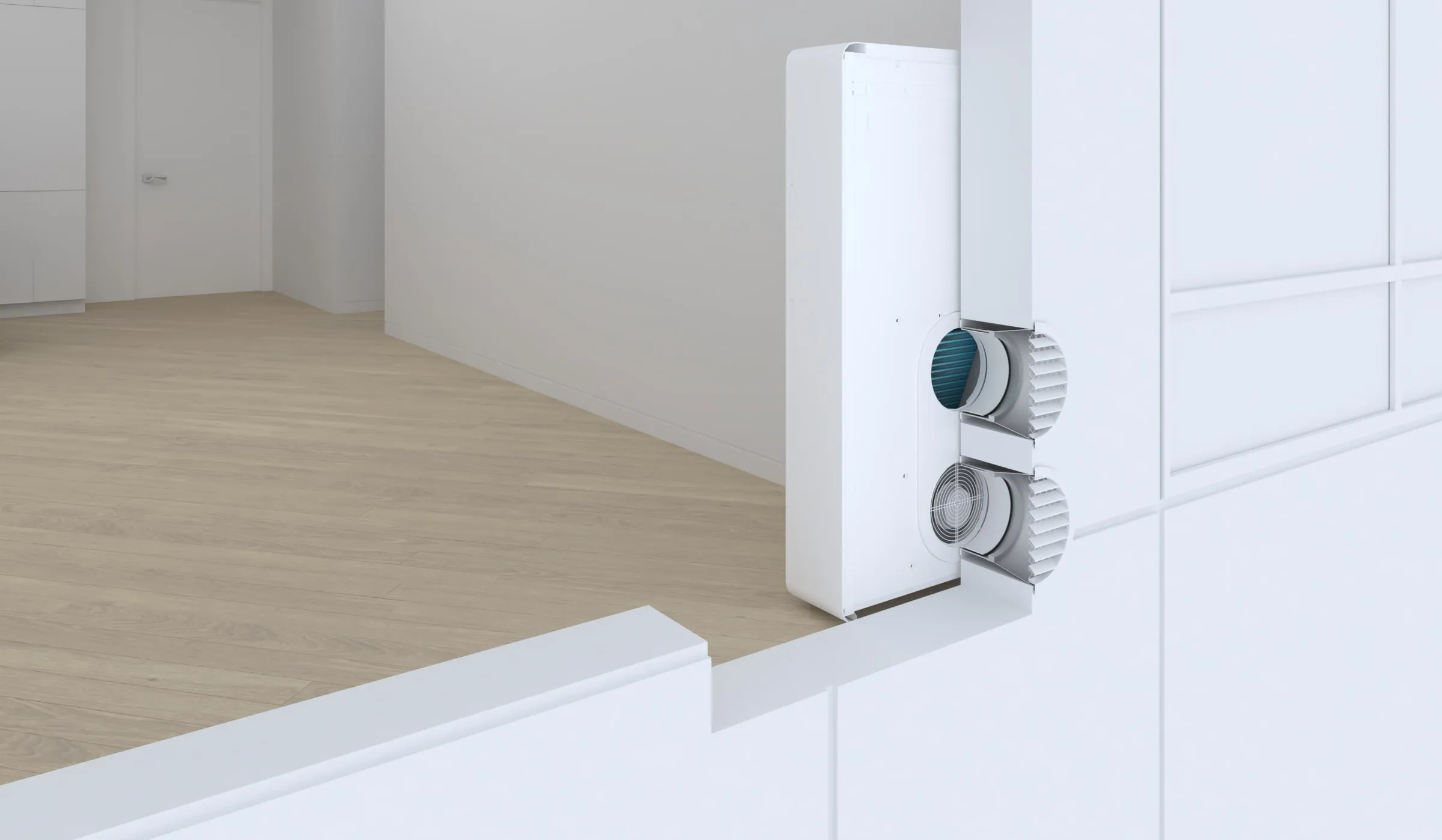

In addition to the typical twin external vents, AIO Floor Standing can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.

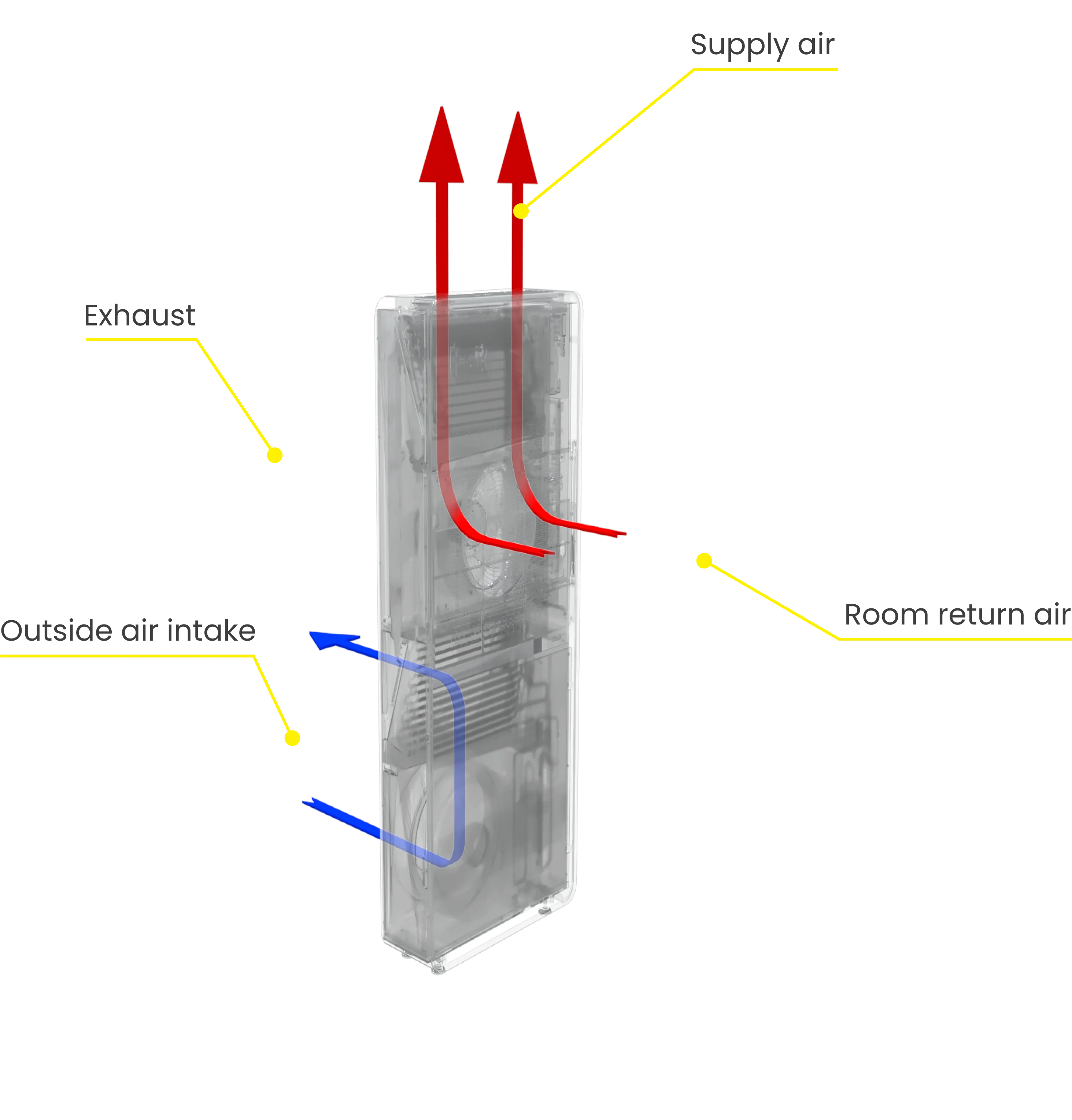

The supply air comes through the top with an adjustable grill.
The return air is at the third of the unit, coming through the integrated return air grill.
The 8‑inch outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
The 8‑inch round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
CAD Files — For CAD and DWG files, please scan or click the QR code below.
| Heat Pump only | 95°F¹ | 105°F² | 115°F³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kBtu/h) | 10.2 | 8.0 | 7.5 |
| Recommended (kBtu/h)* | 9.3 | 7.6 | 7.1 |
| Nominal (kBtu/h) | 9.3 | 7.4 | 7.1 |
| Minimum (kBtu/h) | 3.9 | 3.3 | 3.3 |
| Power Input | |||
| Maximum (kW) | 1.25 | 1.00 | 1.08 |
| Recommended (kW)* | 1.02 | 0.94 | 0.98 |
| Nominal (kW) | 1.02 | 0.90 | 0.98 |
| Minimum (kW) | 0.21 | 0.24 | 0.27 |
| Efficiency | |||
| Maximum | 8.17 | 8.0 | 7.0 |
| Recommended | 9.1 | 8.1 | 7.2 |
| Nominal | 9.1 | 8.2 | 7.2 |
| SEER2 | 13.7 | - | - |
| Moisture removal (Pts/h) | 1.8 | 2.1 | 2.3 |
* This is the recommended capacity for sizing the unit to the space
| Heat Pump only** | 47°F¹ | 17°F² | 5°F³ | 0°F⁴ | -5°F⁵ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kBtu/h) | 10.1 | 6.4 | 6.0 | 5.7 | 5.3 |
| Recommended (kBtu/h)* | 9.2 | 5.5 | 5.3 | 5.1 | 4.9 |
| Nominal (kBtu/h) | 9.2 | 5.5 | 5.3 | 5.1 | 4.9 |
| Minimum (kBtu/h) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Power Input | |||||
| Maximum (kW) | 1.03 | 1.05 | 1.47 | 1.52 | 1.56 |
| Recommended (kW)* | 0.85 | 0.81 | 1.11 | 1.15 | 1.20 |
| Nominal (kW) | 0.85 | 0.81 | 1.11 | 1.15 | 1.20 |
| Minimum (kW) | 0.26 | 0.4 | 0.55 | 0.59 | 0.63 |
| Efficiency | |||||
| Maximum | 2.9 | 1.8 | 1.2 | 1.1 | 1.0 |
| Recommended | 3.2 | 2.0 | 1.4 | 1.3 | 1.2 |
| Nominal | 3.2 | 2.0 | 1.4 | 1.3 | 1.2 |
| Minimum | 3.5 | 2.2 | 1.6 | 1.5 | 1.4 |
| HSPF2 | 7.0 | - | - | - | - |
* This is the recommended capacity for sizing the unit to the space.
** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.
| Heat Pump only | 35°C¹ | 41°C² | 46°C³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kW) | 3.0 | 2.3 | 2.2 |
| Recommended (kW)* | 2.7 | 2.2 | 2.1 |
| Nominal (kW) | 2.7 | 2.2 | 2.1 |
| Minimum (kW) | 1.1 | 1.0 | 1.0 |
| Power Input | |||
| Maximum (kW) | 1.25 | 1.00 | 1.08 |
| Recommended (kW)* | 1.02 | 0.94 | 0.98 |
| Nominal (kW) | 1.02 | 0.90 | 0.98 |
| Minimum (kW) | 0.21 | 0.24 | 0.27 |
| Efficiency | |||
| Maximum | 8.17 | 8.0 | 7.0 |
| Recommended | 9.1 | 8.1 | 7.2 |
| Nominal | 9.1 | 8.2 | 7.2 |
| SEER2 | 13.7 | - | - |
| Moisture removal (L/h) | 0.9 | 1.0 | 1.1 |
* This is the recommended capacity for sizing the unit to the space
| Heat Pump only** | 8°C⁴ | -8°C⁵ | -15°C⁶ | -17°C⁷ | -20°C⁸ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kW) | 3.0 | 1.9 | 1.8 | 1.7 | 1.6 |
| Recommended (kW)* | 2.7 | 1.6 | 1.6 | 1.5 | 1.4 |
| Nominal (kW) | 2.7 | 1.6 | 1.6 | 1.5 | 1.4 |
| Minimum (kW) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Power Input | |||||
| Maximum (kW) | 1.03 | 1.05 | 1.47 | 1.52 | 1.56 |
| Recommended (kW)* | 0.85 | 0.81 | 1.11 | 1.15 | 1.20 |
| Nominal (kW) | 0.85 | 0.81 | 1.11 | 1.15 | 1.20 |
| Minimum (kW) | 0.26 | 0.4 | 0.55 | 0.59 | 0.63 |
| Efficiency | |||||
| Maximum | 2.9 | 1.8 | 1.2 | 1.1 | 1.0 |
| Recommended | 3.2 | 2.0 | 1.4 | 1.3 | 1.2 |
| Nominal | 3.2 | 2.0 | 1.4 | 1.3 | 1.2 |
| Minimum | 3.5 | 2.2 | 1.6 | 1.5 | 1.4 |
| HSPF2 | 7.0 | - | - | - | - |
* This is the recommended capacity for sizing the unit to the space.
** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW
