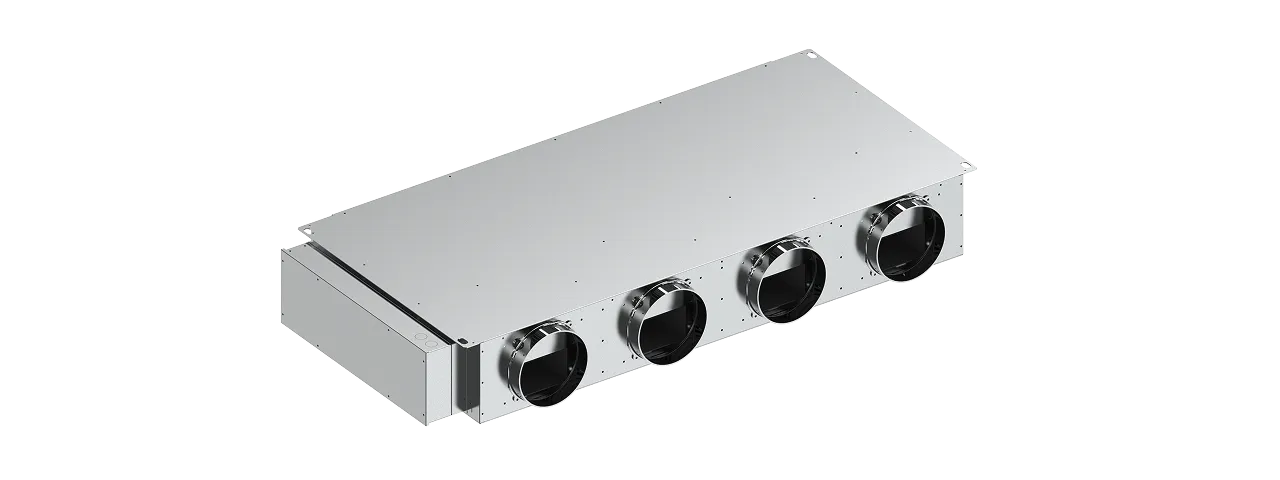

OSMO Multi Zone Ducted

One system, multiple zones

The OSMO Multi Zone Ducted fan coil offers a super slim 7.3" (18.5 cm) high, advanced multi-room solution, featuring independent ECM fans for each zone. This allows true individual control over temperature and fan speed for each room without impacting the system or other rooms. Available in two to five zones, the OSMO Multi Zone stands in a league of its own.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

Slim 7.3‑inch height
Easy to install
High ESP for internal ducting
Bottom or rear returns
Auto-restart
Washable filters
Independent fans for each zone
Independent controls for each zone

Operation

Cool, heat, dehumidify, and auto
Selectable fan speeds, low, med, high, and auto

Connection

2‑pipe
Can connect to low temperature 4 pipe systems with optional 6‑way valve
Available in 1/2 or 3/4 connections

Mounting

Ceiling
Underfloor

Airflow

Available 0.4' WC per zone for ducting

Included controls

WiFi app for Android and iPhone
Centralized control
Wall Mounted Basic touch controller
Third party thermostat interface
BACnet/Modbus interface

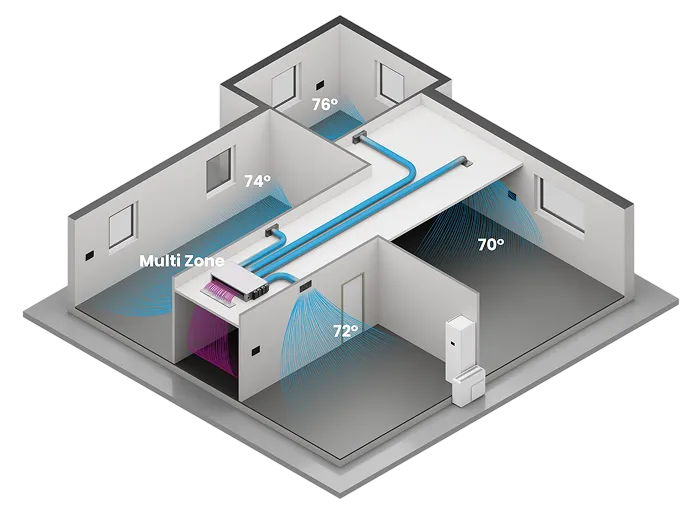

Multi-zone airflow through a multi-room apartment

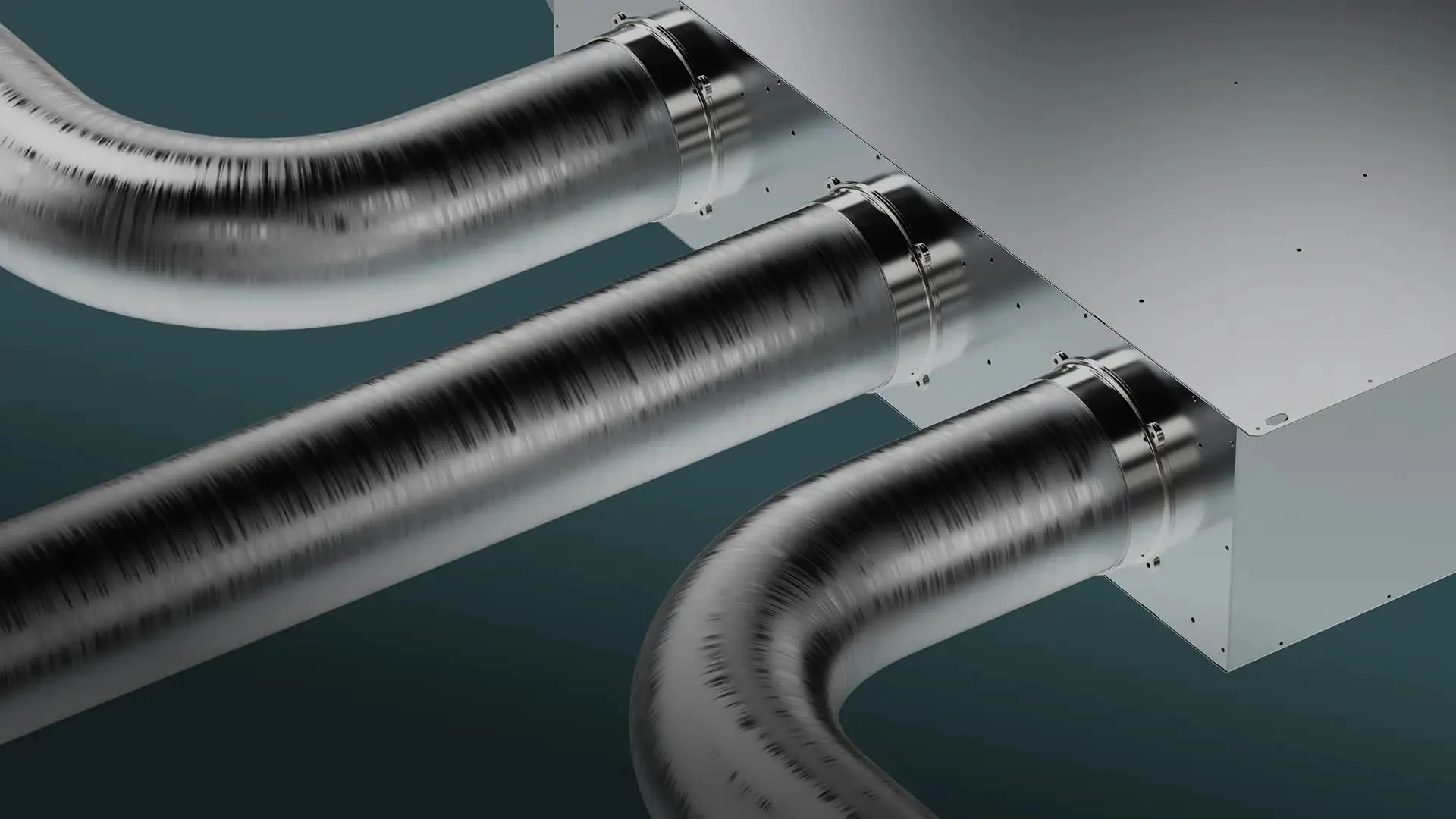

Multi-fans for Multi-zone Management

Each zone/fan can be controlled by a wall control (with Wi-Fi management via App) or by an external 0-10 V signal from thermostats or BMS systems.

Control several fans by a single wall control or a single signal where assigning multiple zones to a single or for higher heating/refrigeration requirements.

Multi Zone with its multi-fans allows constant and precise regulation of the room temperature in several rooms/ areas.

The Smart Vertical Fan Coil

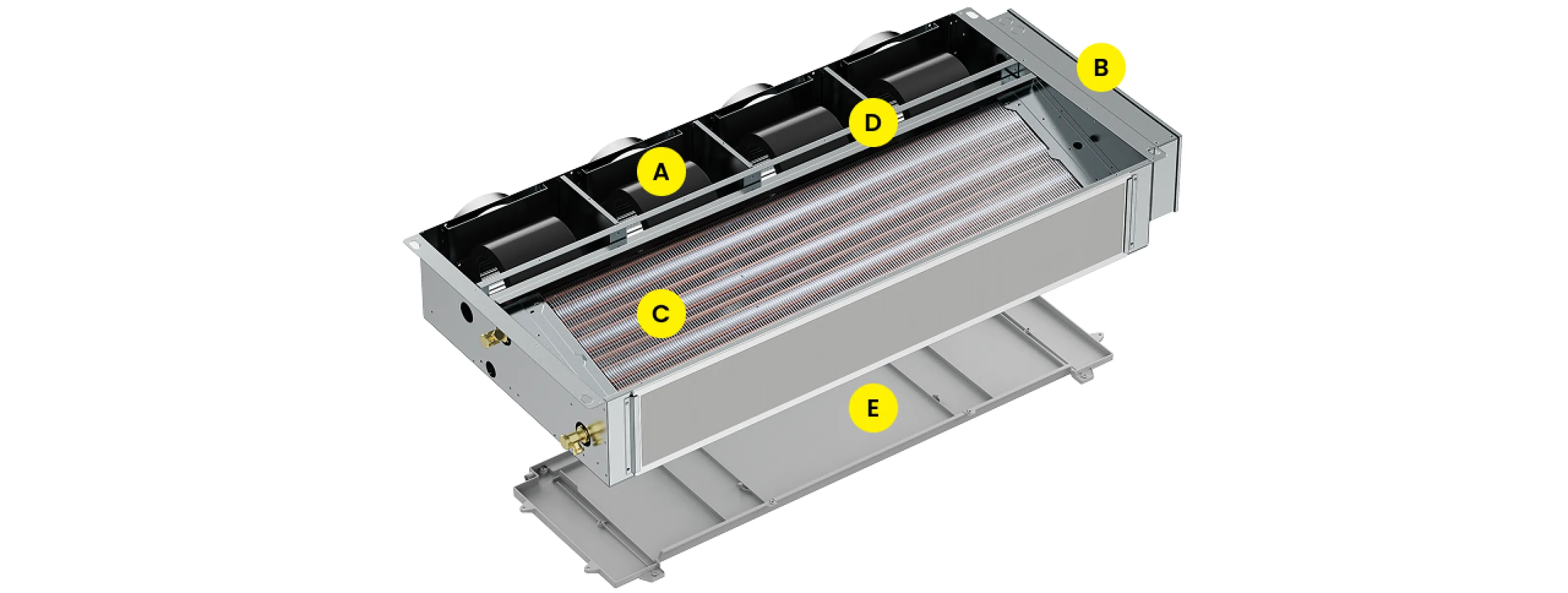

OSMO Multi Zone Ducted labeled component views

AFan
The unit is equipped with an independent DC inverter driven centrifugal fan for each zone resulting in low power consumption and better control.
BElectrical box
Electrical box is excluded from the air flow, with electronic main board control.
CHeat Exchanger
Copper aluminum water to air heat exchanger with hydrophilic treatment fins.
DReversible return with air filter
Allows the collection of condensate.
EHorizontal Condensate Tray
The return can be configured to the rear or bottom. The filter can be configured for a rear or bottom return.

Technical Specifications

Cooling

	MZ12	MZ18	MZ22	MZ26
Total (MBh)	10.3	15	19.4	21.8
Sensible (MBh)	7.3	10.8	14	15.7
Water flow (GPM)	140	211.3	272.1	322.3
Pressure (Ft H2O)	8.4	6.4	6	3.3

Heating

	MZ12	MZ18	MZ22	MZ26
Capacity (MBh)	11.3	16.7	21.5	26.1
Water flow (GPM)	148	221.9	293.3	344.8
Pressure (Ft H2O)	8.4	6.4	6	3.3

Airflow

	MZ12	MZ18	MZ22	MZ26
High (CFM)	141	141	141	141
Medium (CFM)	94	94	94	94
Low (CFM)	29	29	29	29
Static pressure (In W.C.)	0.4	0.4	0.4	0.4

Cooling

	MZ12	MZ18	MZ22	MZ26
Total (kW)	3.0	4.4	5.7	6.4
Sensible (kW)	2.1	3.2	4.1	4.6
Water flow (L)	530.0	799.9	1030.0	1220.0
Pressure (kPa)	25.1	19.1	17.9	9.9

Heating

	MZ12	MZ18	MZ22	MZ26
Capacity (kW)	3.3	4.9	6.3	7.6
Water flow (L)	560.2	840.0	1110.3	1305.2
Pressure (kPa)	25.1	19.1	17.9	9.9

Airflow

	MZ12	MZ18	MZ22	MZ26
High (m³/h)	240	240	240	240
Medium (m³/h)	160	160	160	160
Low (m³/h)	49	49	49	49
Static pressure (Pa)	100	100	100	100
