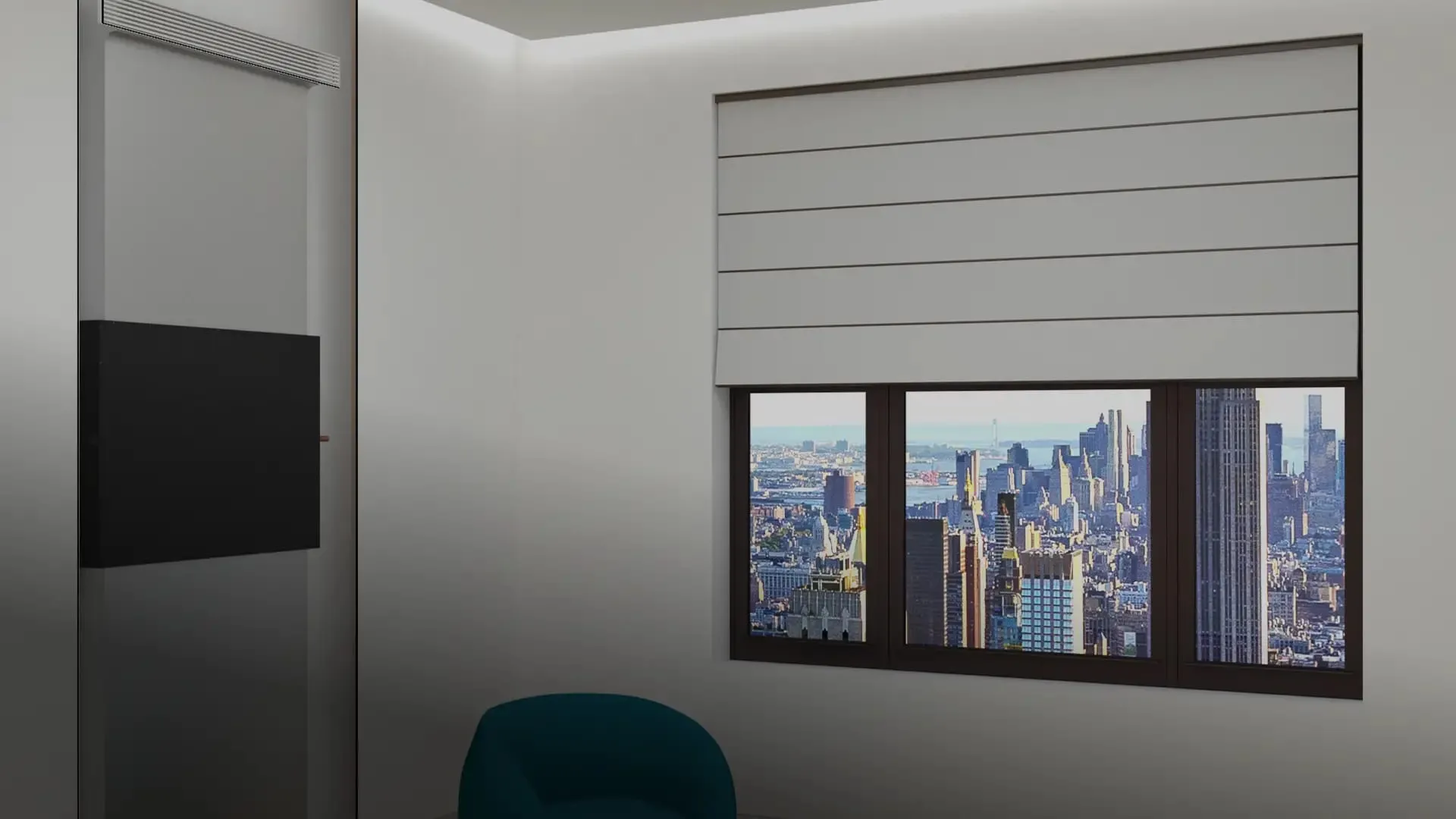

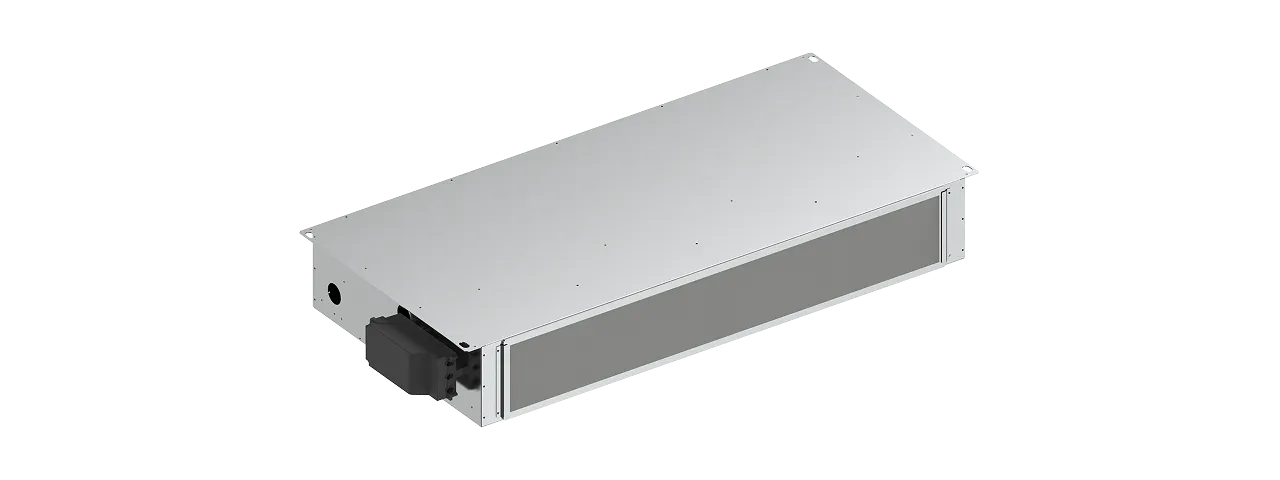

OSMO Vertical Ducted fan coils are extremely thin, at 7.3 inches, allowing them to be discreetly installed behind a wall or cabinet for the highest level of aesthetics, where only a supply and return grille are visible. A super quiet tangential fan sits within a specialized structure that minimizes vibration and optimizes performance.
Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

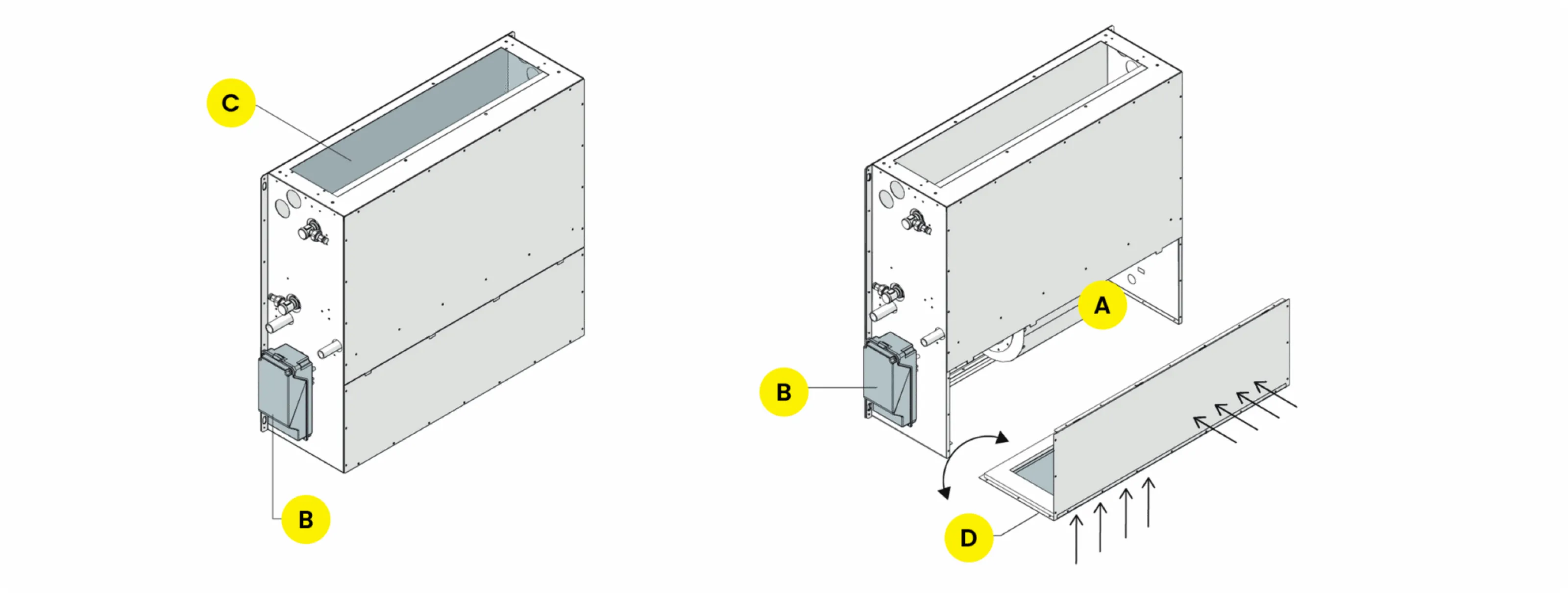

AFan
The unit is equipped with a centrifugal fan and low consumption DC inverter motor and integrated control.
BElectrical box
Electrical box excluded from the air flow, with electronic main board control.
CHeat Exchanger
Copper aluminum water to air heat exchanger with hydrophilic treatment fins.
DReversible return with air filter
The return can be fixed to the unit with the intake air from bottom or front.
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| Total (MBh) | 4.8 | 7.2 | 8.9 | 11.3 | 15.2 |
| Sensible (MBh) | 3.6 | 5.1 | 7.2 | 8.4 | 10.9 |
| Water flow (GPM) | 71.3 | 107 | 134.7 | 161.1 | 212.7 |
| Pressure (Ft H2O) | 1.7 | 2.7 | 5.7 | 3.7 | 4.7 |
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| Capacity (MBh) | 5.6 | 7.2 | 9.8 | 12.7 | 17.7 |
| Water flow (GPM) | 81.9 | 116.2 | 142.7 | 192.8 | 232.5 |
| Pressure (Ft H2O) | 2 | 3 | 6 | 4.3 | 5 |
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| High (CFM) | 171 | 230 | 324 | 400 | 512 |
| Medium (CFM) | 118 | 171 | 230 | 265 | 359 |
| Low (CFM) | 53 | 82.4 | 112 | 135 | 147 |
| Static pressure (In W.C.) | 0.4 | 0.4 | 0.5 | 0.4 | 0.6 |
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| Total (kW) | 1.4 | 2.1 | 2.6 | 3.3 | 4.5 |
| Sensible (kW) | 1.1 | 1.5 | 2.1 | 2.5 | 3.2 |
| Water flow (L) | 269.9 | 405.0 | 509.9 | 609.8 | 805.2 |
| Pressure (kPa) | 5.1 | 8.1 | 17.0 | 11.1 | 14.0 |
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| Capacity (kW) | 1.6 | 2.1 | 2.9 | 3.7 | 5.2 |
| Water flow (L) | 310.0 | 439.9 | 540.2 | 729.8 | 880.1 |
| Pressure (kPa) | 6.0 | 9.0 | 17.9 | 12.9 | 14.9 |
| VD6 | VD8 | VD10 | VD12 | VD20 | |
|---|---|---|---|---|---|
| High (m³/h) | 291 | 391 | 550 | 680 | 870 |
| Medium (m³/h) | 200 | 291 | 391 | 450 | 610 |
| Low (m³/h) | 90 | 140 | 190 | 229 | 250 |
| Static pressure (Pa) | 100 | 100 | 125 | 100 | 149 |
