Controllers

Wireless Energy Management Thermostat

with Built-in Occupancy Sensor

This smart thermostat has an integrated occupancy sensor that uses a combination of motion and thermal sensing technologies for accurate occupancy detection. Reliable occupancy detection allows for energy savings when rooms are unoccupied. Fully configurable energy saving settings allow for customization of the thermostat settings to fit any situation. Built-in wireless mesh-networking enables online management.

AUTO

CONT

Features

Fingerprint-resistant glass ensures that your thermostat maintains a sleek and spotless appearance, even with daily use
Effortlessly adjust temperature settings and access features with a simple tap

Enjoy seamless control through a user-friendly interface, designed for intuitive navigation and personalized comfort
Ensure optimal comfort and energy efficiency by setting personalized temperature schedules for each day of the week

Operation

Modes include: Cool, Heat, Dehumidify, and Fan Only
Fan Speed including: Low, Medium, High, and Auto

Humidity control
Fahrenheit or Celsius in single degree increments

Properties

Mounting: Surface mounted Materials: Black Matte plastic frame
Dimensions: W: 5.60 x 3.46” x 0.91
Wireless 902-928MHz. 2 x 1.5VDC AA Alkaline Non-rechargeable Batteries - Not Supplied 24VAC or 12VDC

Included parts: Controller and Interface to AIO
3-year limited warranty

Advanced Touchscreen Controller

The Wall Mounted, full-color, advanced touchscreen controller is the best choice for the system's easiest and most comprehensive control. The advanced touchscreen controller can be mounted right next to the light switch and is about the size of a standard light switch plate. Extensive programming offers multiple schedules for each day. Commands are intuitive and straightforward.

Note: This controller requires a gateway board (included) which must be field installed and connected inside the unit by an electrician or technician and takes approximately 15 minutes to install.

——

75°F

Features

Full-color TFT Touch Screen
4.3” TFT, with 480 x 272 pixel resolution

Operation

7-day program with multiple schedules per day
Fan Controls Include: Low, Medium, High, and Auto
Louver control
Fahrenheit or Celsius in single degree increments

Modes include: Cool, Heat, Dehumidify, and Fan Only
Fresh air on/off
Sleep mode

Properties

Material: White Matte plastic frame
Weight: 0.5 lb
Dimensions: W: 3.12” x H: 4.76” x D: 0.5” (0.75”D inside j-box)
Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run

Mounting: Mounts to a single gang, standard depth junction box
Included parts: Touchscreen Controller and Interface to AIO
3-year limited warranty

Basic Touch Controller

The Wall Mounted basic touch controller is simple and easy to use, with icons and text for each button. The sleek design and low profile easily blend into any decor. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.

Note: This controller requires a gateway board (included) which must be field installed and connected inside the unit by an electrician or technician and takes approximately 15 minutes to install.

°F

Features

Surface Wall Mounted
Sleek glass touch controller

Always-on back-lit LED dims after 15 seconds of inactivity
Icons and text for each button

Operation

Modes include: Cool, Heat, Dehumidify, and Fan Only
Fan Controls Include: Low, Medium, High, and Auto
Fresh air on/off
Keypad lock

Fahrenheit or Celsius in single degree increments
Louver control
Sleep mode

Properties

Mounting: Surface mounted
Materials: White Matte plastic frame, glass front
Dimensions: W: 3.41” x H: 3.35” x D: 0.31”
Weight: 0.5 lb

Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
Included parts: Touchscreen Controller and Interface to AIO
3-year limited warranty

Wireless Wall Mounted Thermostat

The wireless wall-mounted thermostat with a fully programmable 7-day scheduling feature. It operates wirelessly, transmitting commands to the air conditioning unit via infrared (IR) signals. The thermostat is battery-powered, ensuring reliable operation without the need for direct wiring.

FAN

MODE

°F

REPLACE
BATTERY

AMPM

Type: Low Voltage Thermostat
Temperature Range: 61°F to 88°F
Temperature Differential: 2°F
Relative Humidity: 10% to 90% RH
Operating Environment: 50°F to 110°F, with 5% to 95% relative humidity, non-condensing
Storage Environment: 0°F to 140°F, with 5% to 95% relative humidity, non-condensing

Material: Flame Retardant ABS Plastic, rated UL94-V0
Physical Dimensions: 4.72” width x 3.22” height x 0.87” depth
Mounting: Direct wall mounting
Power Source: Operates with 2 x AAA Alkaline batteries

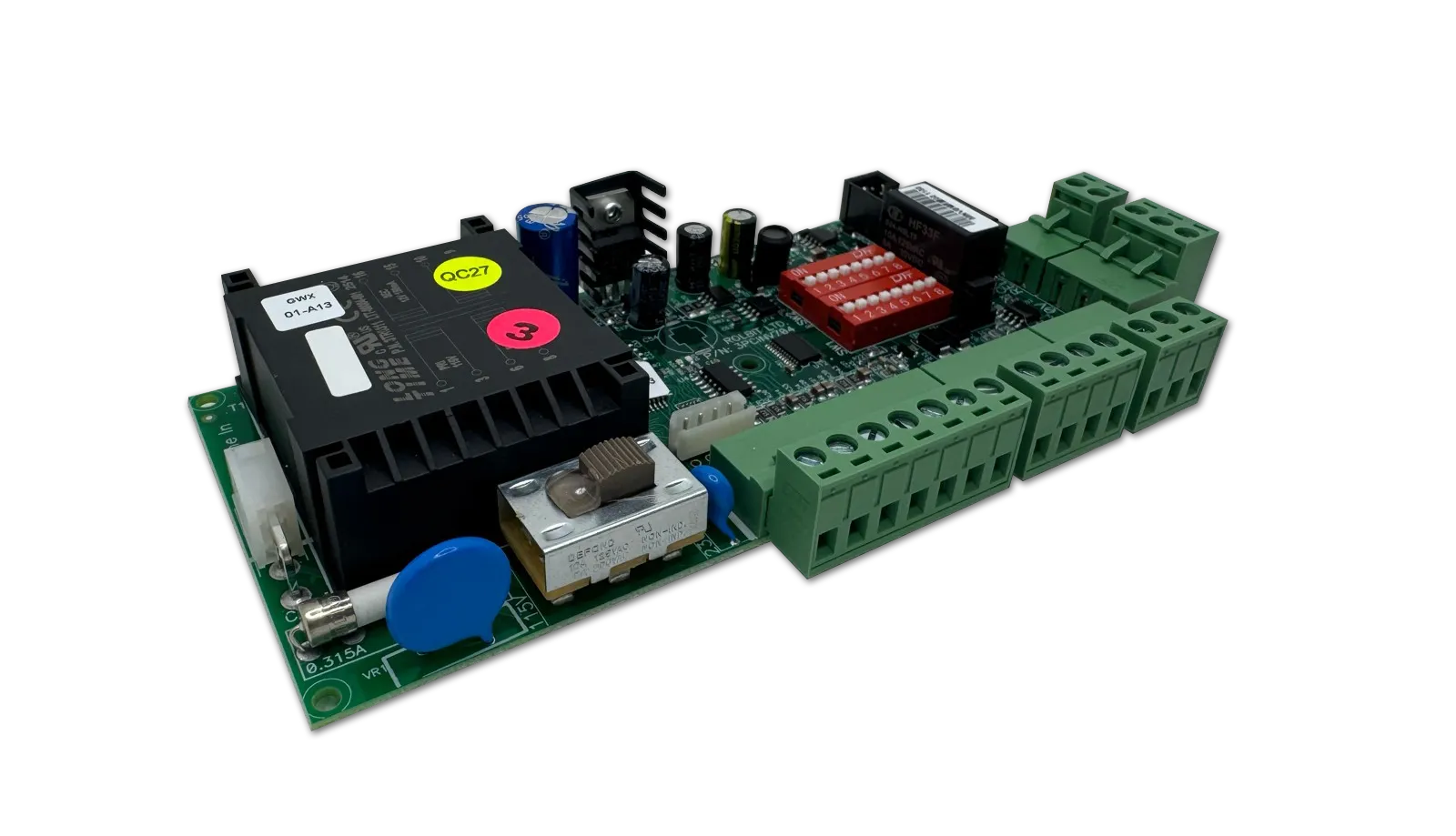

GWX Gateway Control Board

The Advanced Third-Party Gateway Control Board is a versatile and feature-rich solution designed to seamlessly integrate and optimize the operations of Innova Heat Pumps. This advanced controller ensures smooth communication with building management systems, thermostats, and additional accessories, making it ideal for diverse projects with both standard and specialized requirements. Designed for broad compatibility, these gateways work with most wireless thermostats, enabling flexible and scalable system control.
