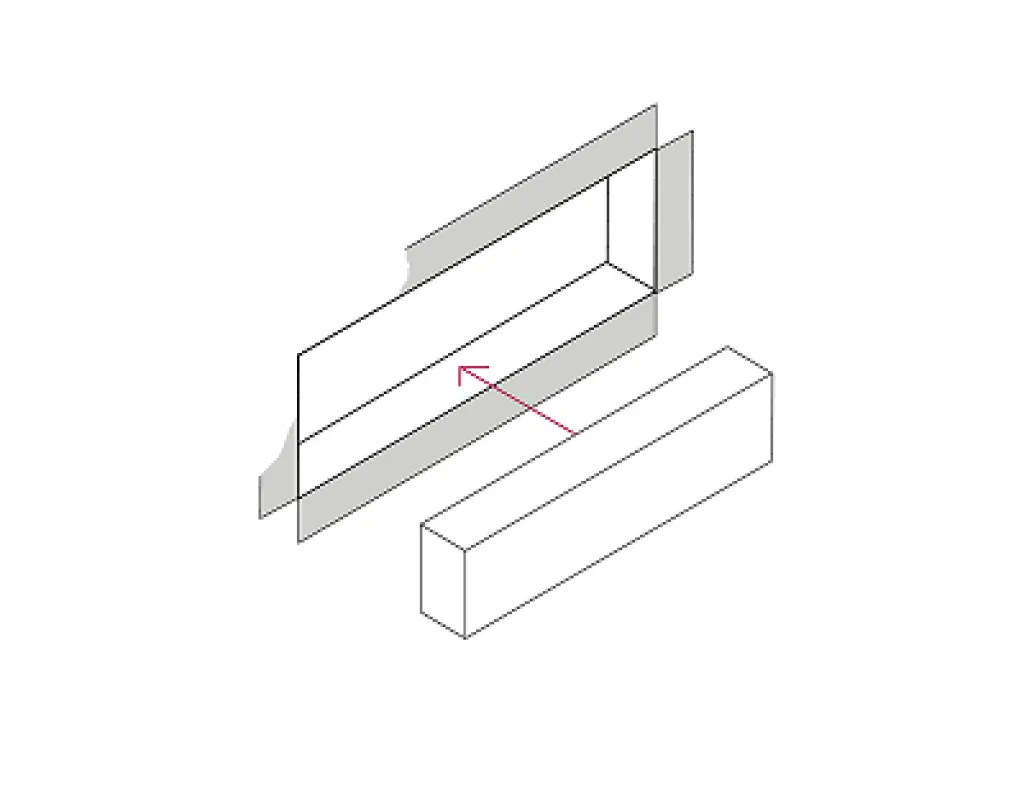

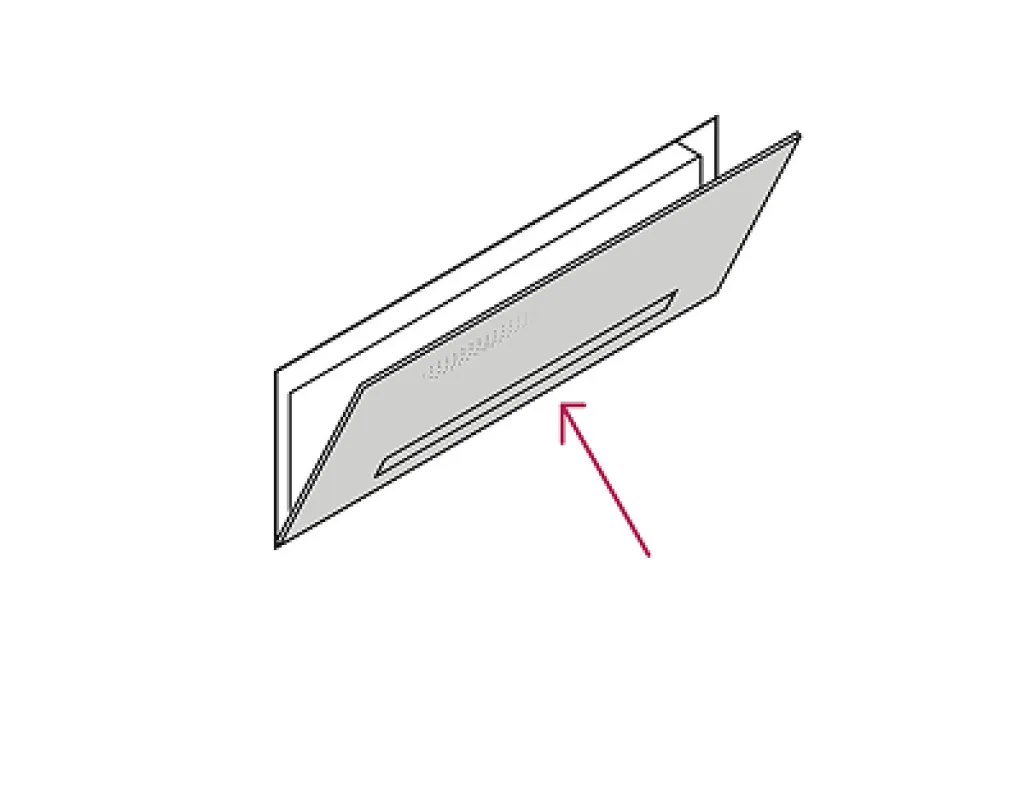

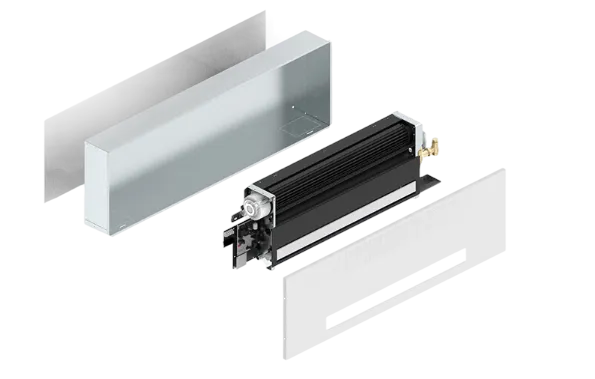

The OSMO Recessed High Wall Plaster Frame fan coil offers the highest level of fit and finish for a high wall fan coil. The plaster frame ensures only the front panel is visible, providing a clean, slim, paintable design ideal for discerning clients and demanding architects. A super quiet tangential fan minimizes vibration while optimizing performance.
Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| Total (MBh) | 4.23 | 5.49 | 6.62 |
| Sensible (MBh) | 3.34 | 4.33 | 5.19 |
| Water flow (GPM) | 54.9 | 73.7 | 96.4 |
| Pressure (Ft H2O) | 3.9 | 1.7 | 1.8 |
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| Capacity (MBh) | 5.12 | 6.86 | 7.27 |
| Water flow (GPM) | 69 | 92 | 119 |
| Pressure (Ft H2O) | 5.45 | 2.41 | 2.71 |
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| High (CFM) | 134 | 195 | 259 |
| Medium (CFM) | 91 | 135 | 167 |
| Low (CFM) | 49 | 73 | 135 |
| Static pressure (In W.C.) | 0.04 | 0.04 | 0.04 |
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| Total (kW) | 1.2 | 1.6 | 1.9 |
| Sensible (kW) | 1.0 | 1.3 | 1.5 |
| Water flow (L) | 207.8 | 279.0 | 364.9 |
| Pressure (kPa) | 11.7 | 5.1 | 5.4 |
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| Capacity (kW) | 1.5 | 2.0 | 2.1 |
| Water flow (L) | 261.2 | 348.3 | 450.5 |
| Pressure (kPa) | 16.3 | 7.2 | 8.1 |
| RHP4 | RHP6 | RHP8 | |
|---|---|---|---|
| High (m³/h) | 228 | 331 | 440 |
| Medium (m³/h) | 155 | 229 | 284 |
| Low (m³/h) | 83 | 124 | 229 |
| Static pressure (Pa) | 10 | 10 | 10 |
