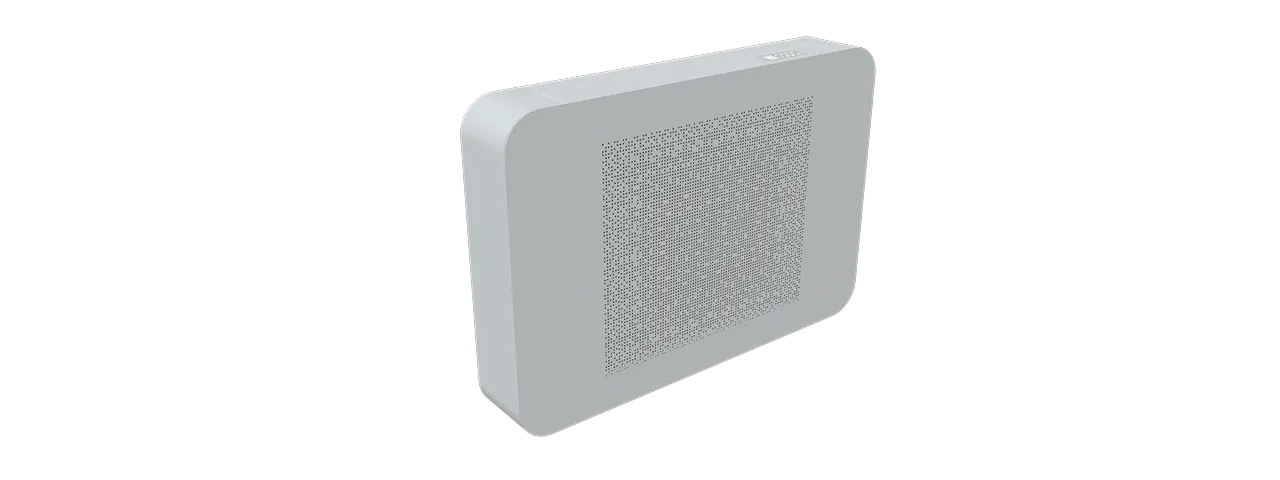

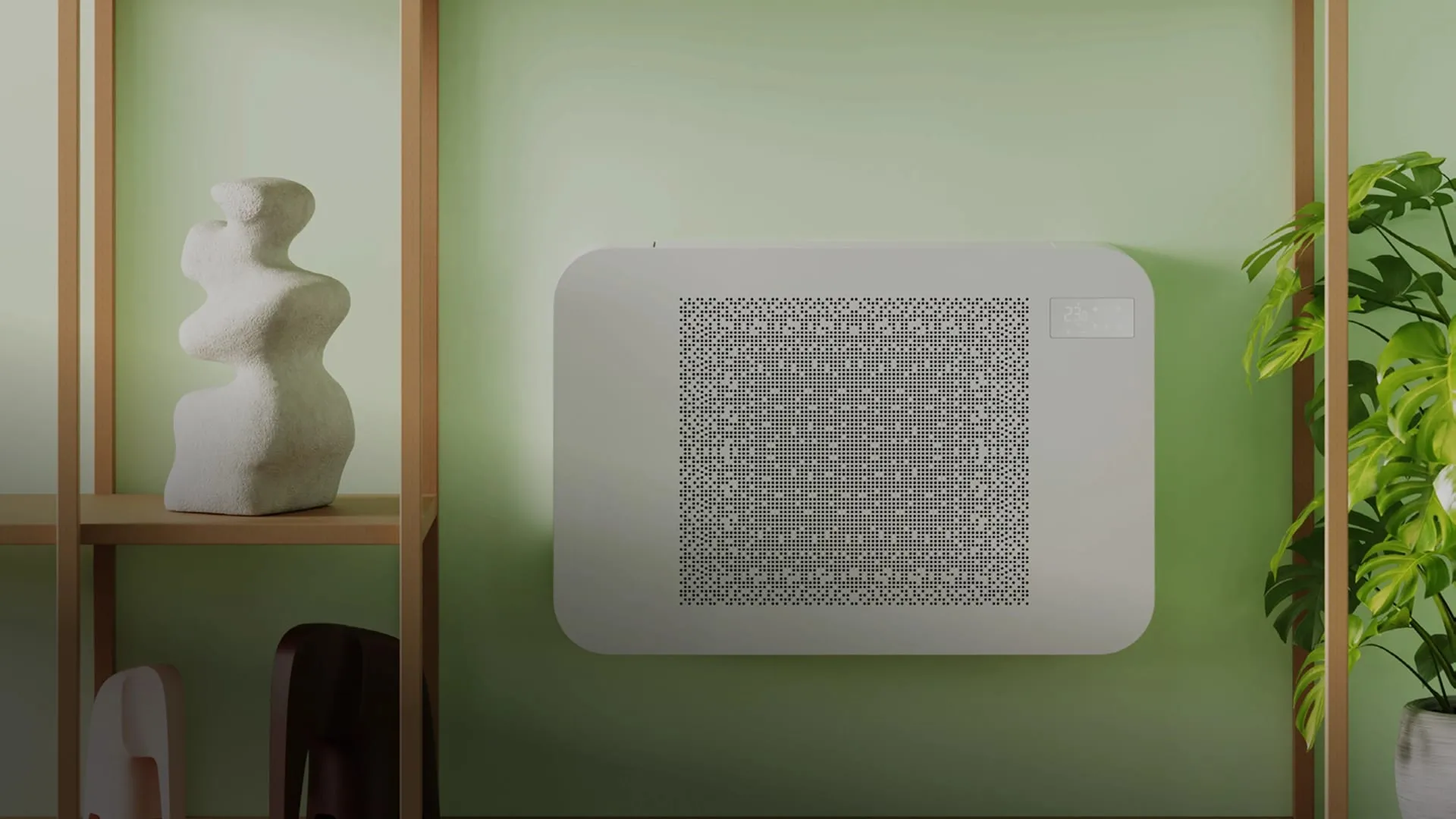

Ideal for rooms where a small dimension is desired, OSMO Compact Wall Mounted, with its paintable all-metal cabinet, is over 30" smaller than other OSMO fan coils for the same output. DC inverter technology keeps operation quiet and efficient, with continuous automatic fan modulation delivering fast, silent, consistent heating.
Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.
| Model | WMC6 | WMC10 |
|---|---|---|
| H (in) | 17.3 | 21.3 |
| L (in) | 25.6 | 31.2 |
| WMC6 | WMC10 | |
|---|---|---|
| Total (MBh) | 5.1 | 9.6 |
| Sensible (MBh) | 4.3 | 7.9 |
| Water flow (GPM) | 66.8 | 125 |
| Pressure (Ft H2O) | 3.0 | 5.7 |
| WMC6 | WMC10 | |
|---|---|---|
| Capacity (MBh) | 6.1 | 10.4 |
| Water flow (GPM) | 80.3 | 134.7 |
| Pressure (Ft H2O) | 3.3 | 5.4 |
| WMC6 | WMC10 | |
|---|---|---|
| High (CFM) | 173 | 258 |
| Medium (CFM) | 124 | 187 |
| Low (CFM) | 69 | 106 |
| Static pressure (In W.C.) | 0.04 | 0.05 |
| WMC6 | WMC10 | |
|---|---|---|
| Total (kW) | 1.5 | 2.8 |
| Sensible (kW) | 1.3 | 2.3 |
| Water flow (L) | 252.9 | 473.2 |
| Pressure (kPa) | 9.0 | 17.0 |
| WMC6 | WMC10 | |
|---|---|---|
| Capacity (kW) | 1.8 | 3.0 |
| Water flow (L) | 304.0 | 509.9 |
| Pressure (kPa) | 9.9 | 16.1 |
| WMC6 | WMC10 | |
|---|---|---|
| High (m³/h) | 294 | 438 |
| Medium (m³/h) | 211 | 318 |
| Low (m³/h) | 117 | 180 |
| Static pressure (Pa) | 10 | 12 |
