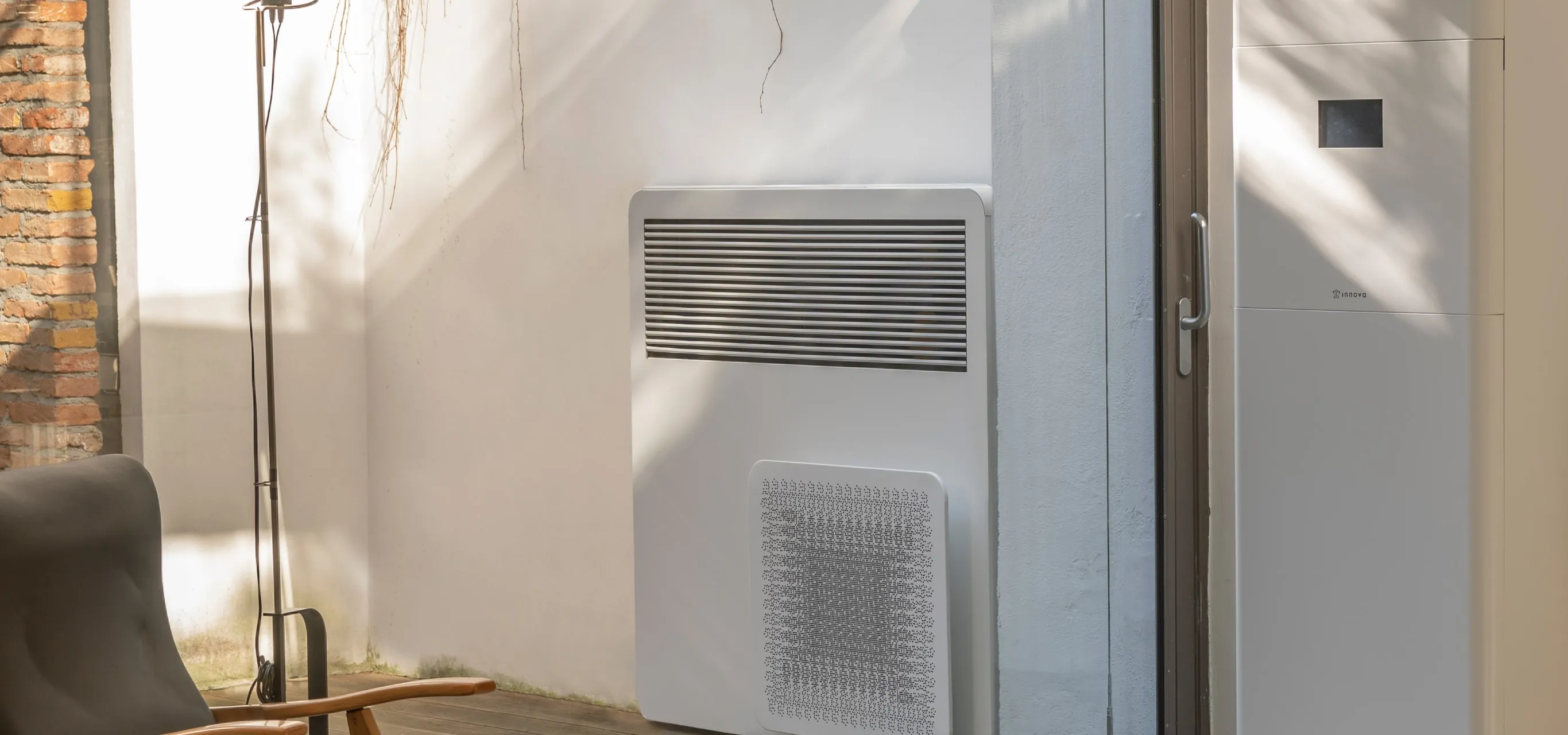

STØNE Architectural Complete outdoor unit on a building exterior

STØNE Architectural Complete

STØNE Architectural Complete outdoor unit render

Tailored for large homes, office buildings, hotels, and apartment buildings, the STØNE Architectural Complete offers versatility.

This all-in-one system provides heating, cooling, and domestic hot water functionalities. Comprising an outdoor condenser unit and an indoor distribution and hot water system.

Key Benefits

  • All-in-one system heating, cooling, and domestic hot water
  • Outdoor condenser + indoor distribution and hot water system
  • Fits into a compact closet without requiring additional clearance
  • User-friendly installation no extensive technical expertise
  • Serves water loop heat pump terminals

Options

  • Available in five sizes two to five tons
  • Floor-standing / wall-mounted unit or a recessed version

Controllers

  • Butler Pro Advanced Controller

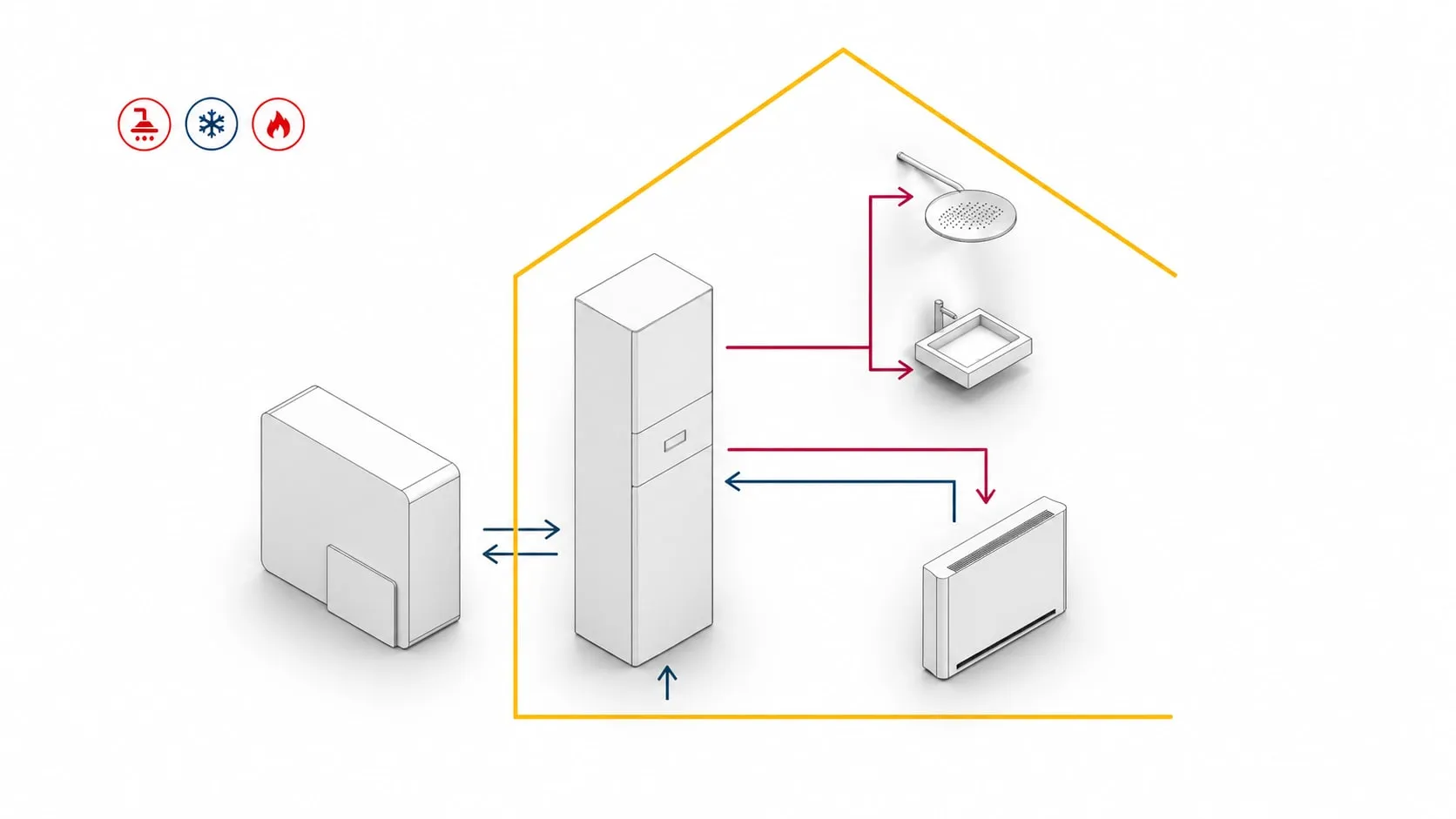

STØNE Architectural Complete Diagram

STØNE ensures a continuous supply of domestic hot water… where cold water flows through a serpentine-shaped pipe system for instantaneous heating.

The three STØNE Architectural mounting variants side by side — floor-standing, wall-mounted and recessed

Dimensions

Outdoor Unit

Top DischargeP5TP7TP9TP11TP13TP15T
Width (in)42.942.952.952.960.660.6
Height (in)36.436.442.942.956.856.8
Depth (in)12.612.613.713.716.016.0
Weight (lb)264264295308339352
Side DischargeP5SP7SP9SP11SP13SP15S
Width (in)42.942.952.952.960.660.6
Height (in)36.436.444.652.560.456.8
Depth (in)12.612.613.713.716.016.0
Weight (lb)264264295308339352
RecessedP5SP7SP9SP11SP13SP15S
Width (in)42.942.952.952.960.660.6
Height (in)36.436.444.652.560.456.8
Depth (in)12.612.613.713.716.016.0
Weight (lb)264264295308339352

Clearances

Top Discharge
Side Discharge
Recessed

Outdoor Unit

Top DischargeP5TP7TP9TP11TP13TP15T
Width (mm)1,0891,0891,3441,3441,5391,539
Height (mm)9259251,0891,0891,4431,443
Depth (mm)320320348348407407
Weight (kg)119.8119.8133.8139.7153.8159.7
Side DischargeP5SP7SP9SP11SP13SP15S
Width (mm)1,0891,0891,3441,3441,5391,539
Height (mm)1,1511,1511,3161,3161,6491,649
Depth (mm)320320348348407407
Weight (kg)119.8119.8133.8139.7153.8159.7
RecessedP5SP7SP9SP11SP13SP15S
Width (mm)1,0891,0891,3441,3441,5391,539
Height (mm)1,1511,1511,3161,3161,6491,649
Depth (mm)333333358358414414
Weight (kg)109.8109.8119.8124.7139.7144.7

Clearances

Top Discharge
Side Discharge
Recessed

Key Specifications

Heating
47°FC5C7C9C11C13C15
Maximum capacity (Btu/h)25.8 Btu/h36.7 Btu/h39.1 Btu/h46.2 Btu/h51.9 Btu/h65 Btu/h
Nominal capacity (Btu/h)18.8 Btu/h25.5 Btu/h31.2 Btu/h36.3 Btu/h42.6 Btu/h51.7 Btu/h
Power (kW)1.16 kW1.62 kW1.83 kW2.37 kW2.62 kW3.23 kW
Efficiency4.744.674.764.484.764.70
5°FC5C7C9C11C13C15
Maximum capacity (Btu/h)14.3 Btu/h17.5 Btu/h21.5 Btu/h25.1 Btu/h28 Btu/h34.7 Btu/h
Power (kW)1.52 kW1.96 kW2.28 kW2.75 kW2.87 kW3.58 kW
Efficiency2.762.622.762.682.862.84
Cooling
C5C7C9C11C13C15
Maximum capacity (Btu/h)22.9 Btu/h30.2 Btu/h32.4 Btu/h38.0 Btu/h42.5 Btu/h54.3 Btu/h
Nominal capacity (Btu/h)14.3 Btu/h22.0 Btu/h26.6 Btu/h30.0 Btu/h34.1 Btu/h41.1 Btu/h
Power (kW)1.22 kW2.0 kW2.33 kW2.65 kW2.99 kW3.71 kW
Efficiency EER211.7010.9611.3911.2911.3911.05
Efficiency SEER215.2813.9214.6814.5114.6814.10
Operating Limits
Ambient TemperatureEntering Water TemperatureLeaving Water Temperature
Heating
-13°F68°F77°F
-13°F95°F113°F
14°F113°F131°F
100°F113°F131°F
100°F68°F77°F
Cooling
59°F54°F45°F
59°F86°F77°F
117°F86°F77°F
117°F54°F45°F
Heating
8°CC5C7C9C11C13C15
Maximum capacity (kW)7.6 kW10.8 kW11.5 kW13.5 kW15.2 kW19.1 kW
Nominal capacity (kW)5.5 kW7.5 kW9.1 kW10.5 kW12.5 kW15.2 kW
Power (kW)1.16 kW1.62 kW1.83 kW2.37 kW2.62 kW3.23 kW
Efficiency4.744.674.764.484.764.70
−15°CC5C7C9C11C13C15
Maximum capacity (kW)4.2 kW5.1 kW6.3 kW7.4 kW8.2 kW10.2 kW
Power (kW)1.52 kW1.96 kW2.28 kW2.75 kW2.87 kW3.58 kW
Efficiency2.762.622.762.682.862.84
Cooling
C5C7C9C11C13C15
Maximum capacity (kW)6.7 kW8.9 kW9.5 kW11.2 kW12.5 kW15.9 kW
Nominal capacity (kW)4.2 kW6.5 kW7.8 kW8.8 kW10.0 kW12.0 kW
Power (kW)1.22 kW2.0 kW2.33 kW2.65 kW2.99 kW3.71 kW
Efficiency EER211.7010.9611.3911.2911.3911.05
Efficiency SEER215.2813.9214.6814.5114.6814.10
Operating Limits
Ambient TemperatureEntering Water TemperatureLeaving Water Temperature
Heating
-25°C20°C25°C
-25°C35°C45°C
-10°C45°C55°C
38°C45°C55°C
38°C20°C25°C
Cooling
15°C12°C7°C
15°C30°C25°C
47°C30°C25°C
47°C12°C7°C
