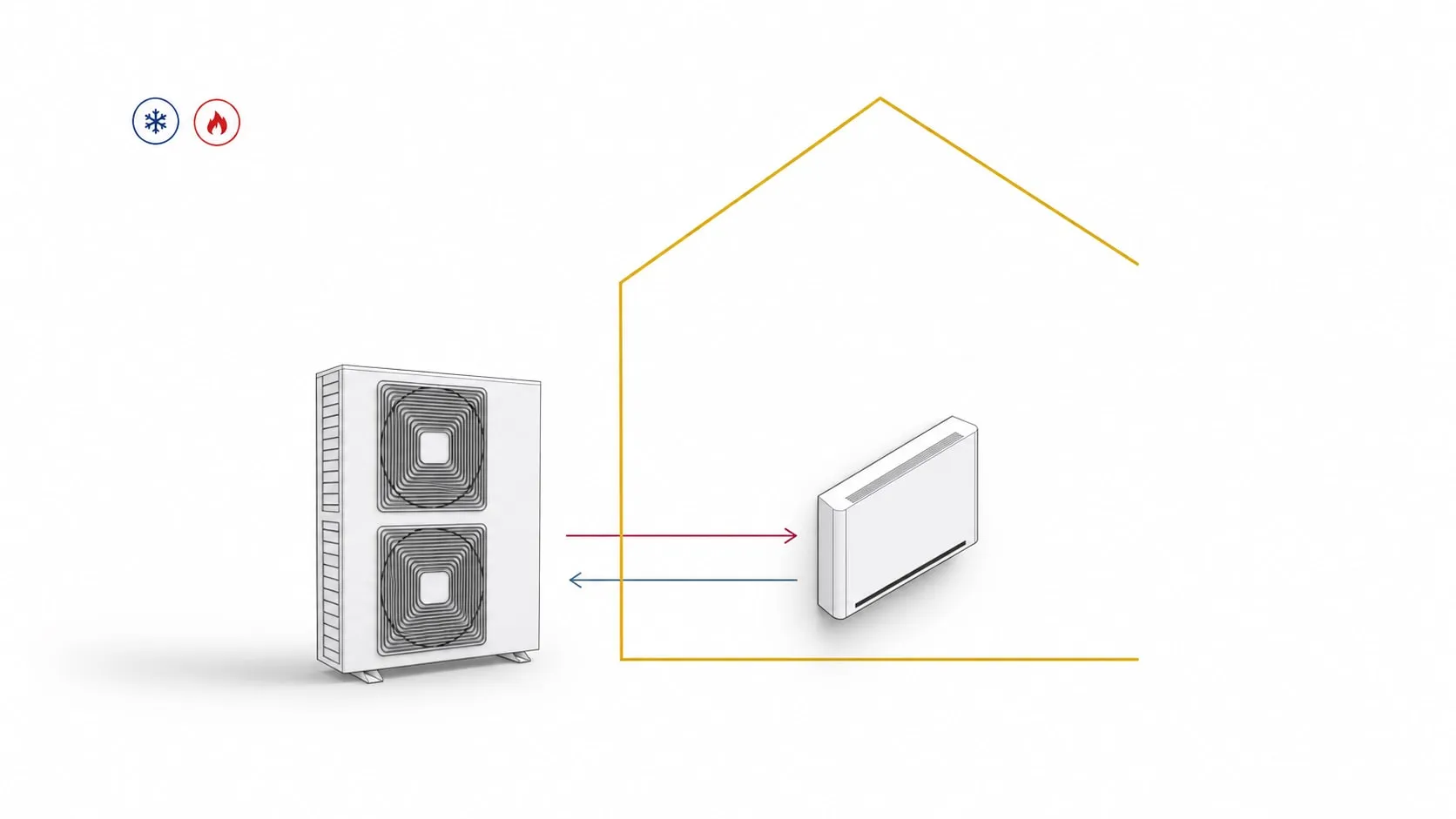

The STØNE Pro is a powerful, high-efficiency, Water-Source Heat Pump, engineered for large-scale commercial, multifamily, and institutional applications.

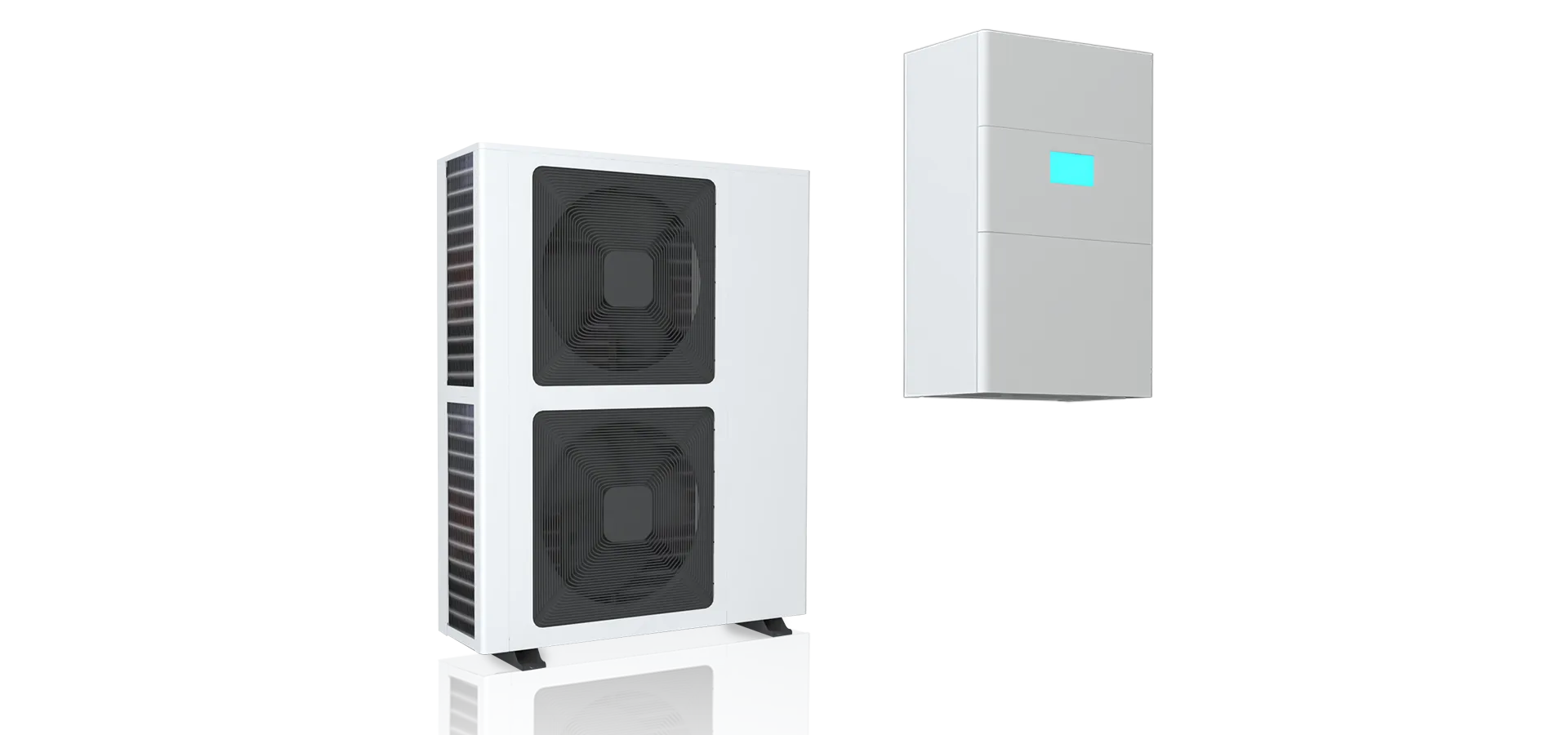

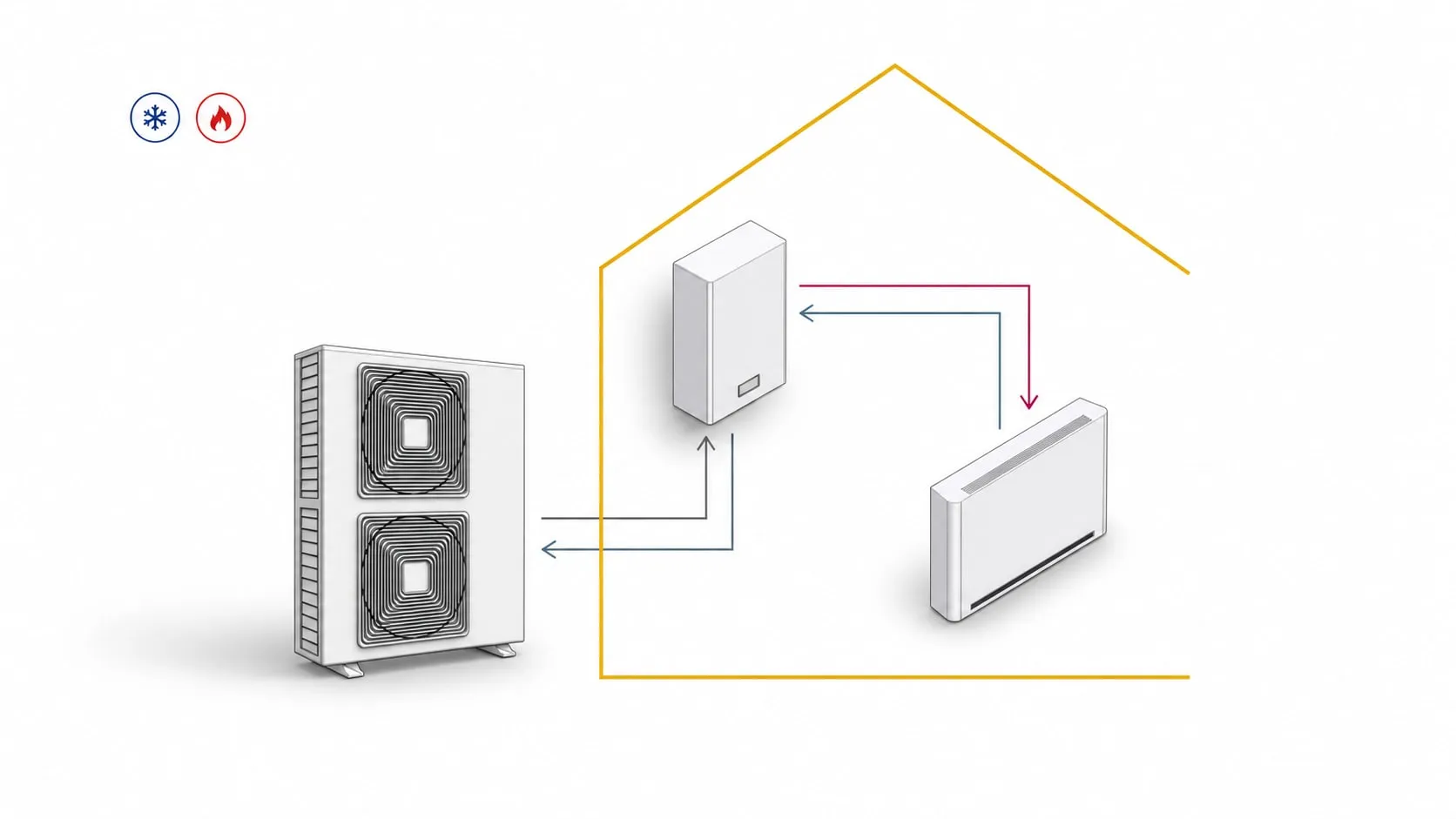

The STØNE Pro Split is a split-system heating and cooling solution tailored for large homes, offices, hotels, and apartment buildings.

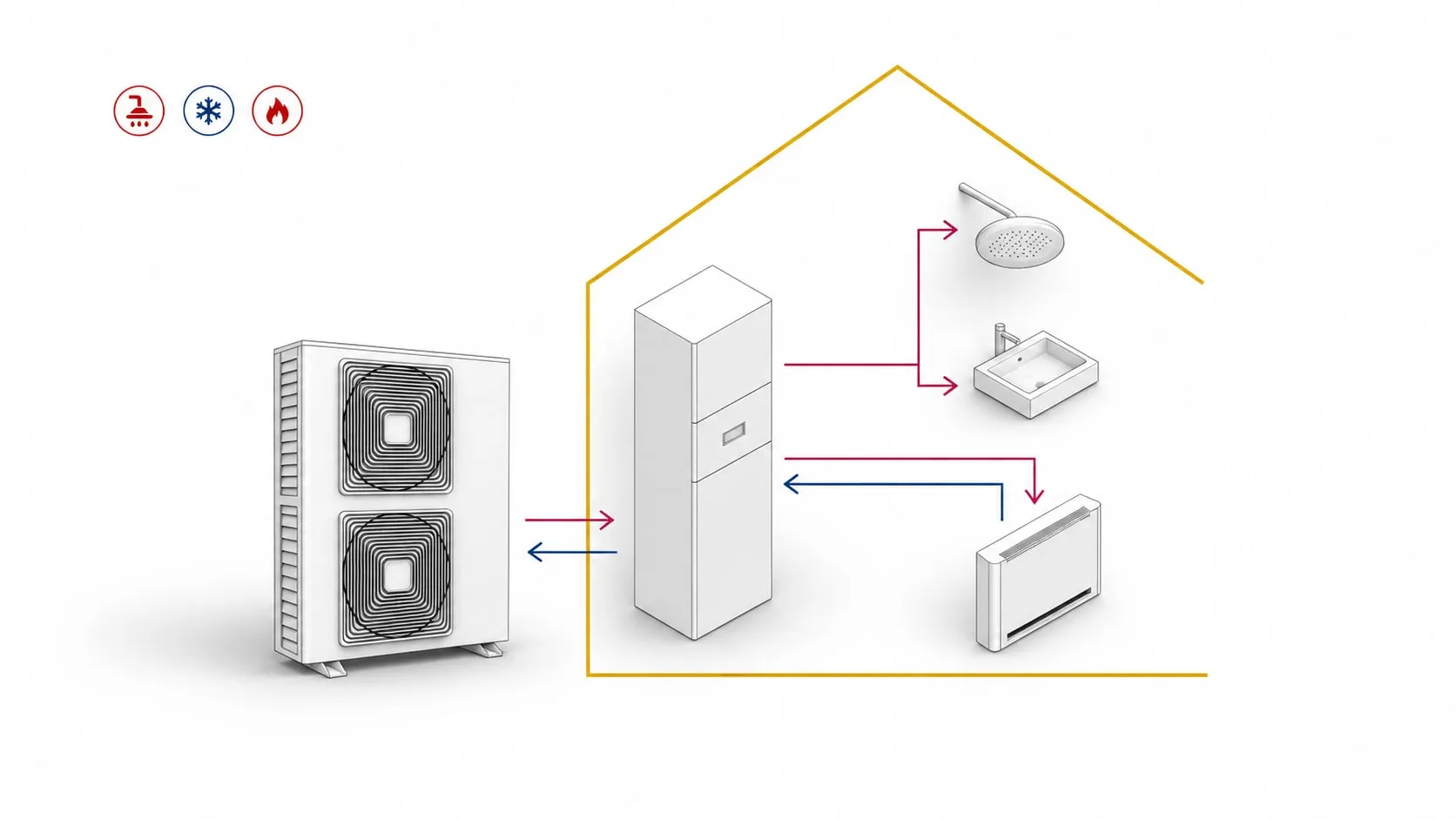

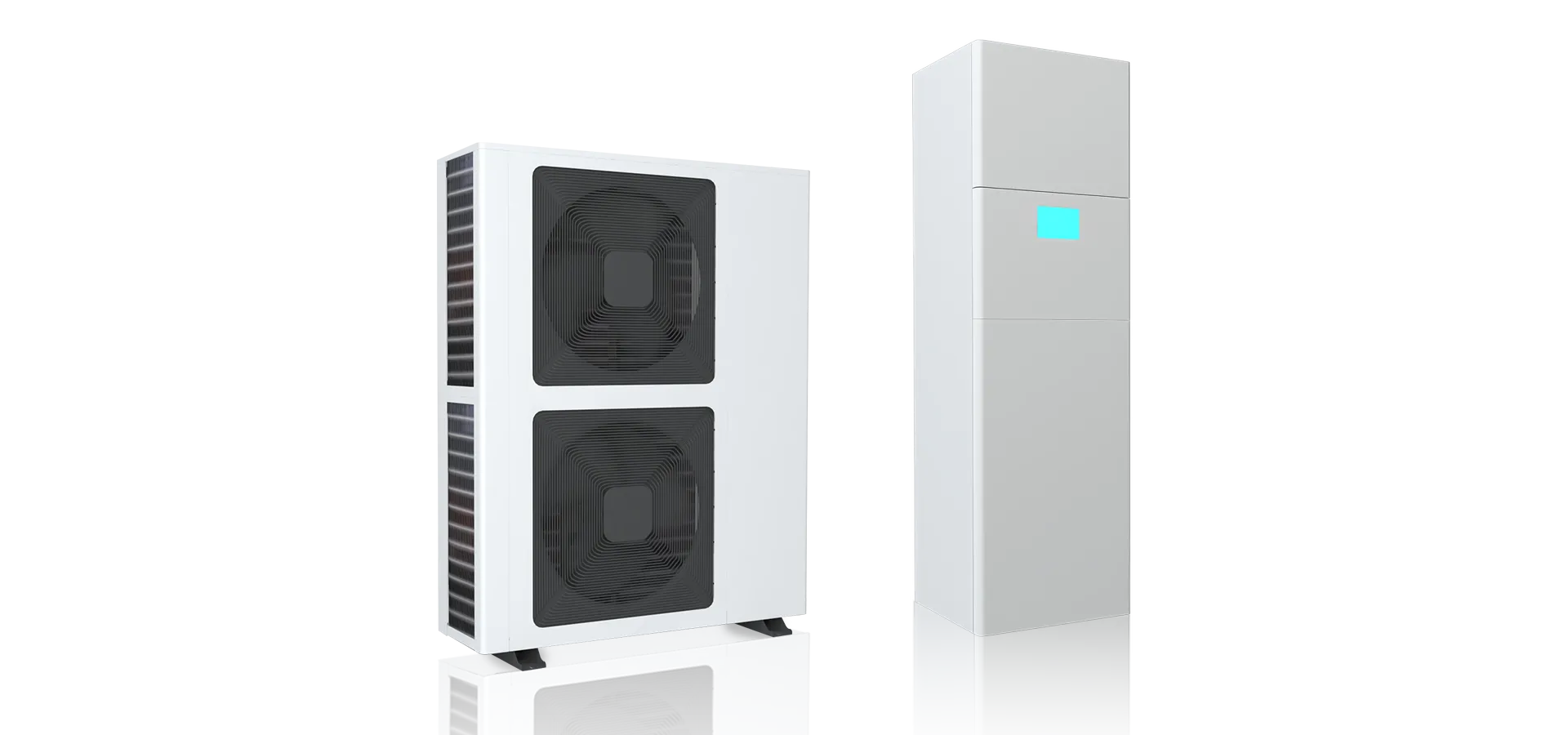

The STØNE Pro Complete is an all-in-one heating, cooling, and hot water solution tailored for large homes, offices, hotels, and apartment buildings.
STØNE ensures a continuous supply of domestic hot water… where cold water flows through a serpentine-shaped pipe system for instantaneous heating.
STØNE ensures a continuous supply of domestic hot water… where cold water flows through a serpentine-shaped pipe system for instantaneous heating.
STØNE ensures a continuous supply of domestic hot water… where cold water flows through a serpentine-shaped pipe system for instantaneous heating.
| 47°F | STØNE Pro 30 |
|---|---|
| Maximum capacity (Btu/h) | 123 Btu/h |
| Nominal capacity (Btu/h) | 103 Btu/h |
| Power (kW) | 6.8 kW |
| Efficiency | 4.4 |
| 5°F | STØNE Pro 30 |
|---|---|
| Maximum capacity (Btu/h) | 82 Btu/h |
| Nominal capacity (Btu/h) | 65 Btu/h |
| Power (kW) | 6.3 kW |
| Efficiency | 3.0 |
| STØNE Pro 30 | |
|---|---|
| Maximum capacity (Btu/h) | 120 Btu/h |
| Nominal capacity (Btu/h) | 92 Btu/h |
| Power (kW) | 10.2 kW |
| Efficiency | 9.03 |
| Ambient Temperature | Entering Water Temperature | Leaving Water Temperature |
|---|---|---|
| Heating | ||
| -13°F | 68°F | 77°F |
| -13°F | 95°F | 113°F |
| 14°F | 113°F | 131°F |
| 100°F | 113°F | 131°F |
| 100°F | 68°F | 77°F |
| Cooling | ||
|---|---|---|
| 59°F | 54°F | 45°F |
| 59°F | 86°F | 77°F |
| 117°F | 86°F | 77°F |
| 117°F | 54°F | 45°F |
| 47°F | STØNE Pro 30 |
|---|---|
| Maximum capacity (kW) | 36.1 kW |
| Nominal capacity (kW) | 30.2 kW |
| Power (kW) | 6.8 kW |
| Efficiency | 4.4 |
| 5°F | STØNE Pro 30 |
|---|---|
| Maximum capacity (kW) | 24.0 kW |
| Nominal capacity (kW) | 19.1 kW |
| Power (kW) | 6.3 kW |
| Efficiency | 3.0 |
| STØNE Pro 30 | |
|---|---|
| Maximum capacity (kW) | 35.2 kW |
| Nominal capacity (kW) | 27.0 kW |
| Power (kW) | 10.2 kW |
| Efficiency | 9.03 |
| Ambient Temperature | Entering Water Temperature | Leaving Water Temperature |
|---|---|---|
| Heating | ||
| -25°C | 20°C | 25°C |
| -25°C | 35°C | 45°C |
| -10°C | 45°C | 55°C |
| 38°C | 45°C | 55°C |
| 38°C | 20°C | 25°C |
| Cooling | ||
|---|---|---|
| 15°C | 12°C | 7°C |
| 15°C | 30°C | 25°C |
| 47°C | 30°C | 25°C |
| 47°C | 12°C | 7°C |
